11kv Series Oil-immersed Distribution Transformer
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

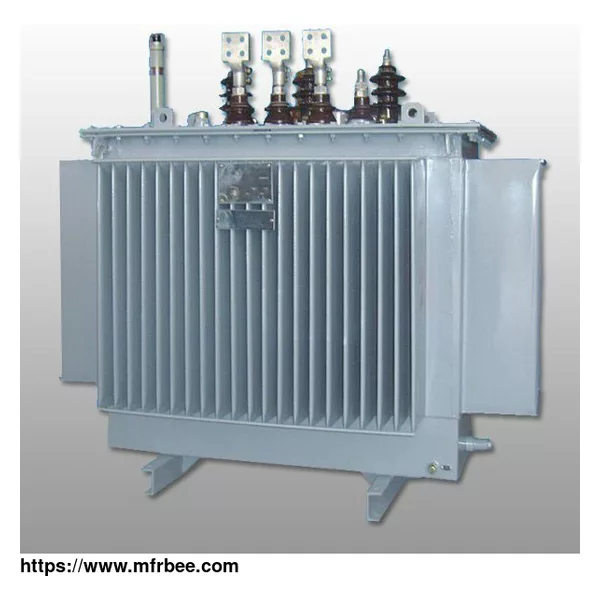

General introduction ofS11-M Type 10kv Series Sealed Tank Distribution Transformer
S11-M transformer is in development at S9 series transformer. It is in low loss, low noise, capable of short-circuit, good impact resistance and Well-run performance.
It applies new type insulation structure and improves the ability of short-circuit resistance. The iron core is made of high-quality cold-rolled silicon-steel plate. High-voltage winding group is
made of high quality copper wires and it adopts multilayer cylindrical structure. All fasteners have been processed with special treatment to prevent them from loosening.
Environmental conditions of S11-M Type 10kv Series Sealed Tank Distribution Transformer
1.Type:Outdoor
2.Normal Service Conditions:
3.The height above the sea level is below 1000m;
4.Ambient temperature: Highest air temperature+40 ℃, Lowest air temperature-25℃
5.Relative air humidity:≤90%(+25℃)
6.installation site: no corrosion gas, No obvious dirt
For Agricultural power distribution and lighting
Transformer Standard of S11-M Type 10kv Series Sealed Tank Distribution Transformer
GB1094.1~2-1996 power transformer
GB1094.3,5-2003 power transformer
GB/T6451-2008 Three phase oil immersed power transformer
Model description
Features of S11-M Type 10kv Series Sealed Tank Distribution Transformer
A.Good heat emission, big overload capacity. Can work without wind machine for long time under 130 overload, and be full load without compulsive wind cool without capacity descending under IP45
condition.
B.Perfect safe and resistance to fire operating can be combusting for long period under 800ºC and without smoke
C.Strong resistance to thermal shock(can be full load immediately at -50ºC)
D.Complete waterproof and airproof.
E.No partial discharge
F. Good hydrophobility and good resistance to alkaline cauterization and fundal influence
G. Environmental, low noise, no deleerious gas, easy to decomposition.
oil immersed transformer specification
Technical Data of 10kV S11, S11-M Series Distribution Transformer
Rated Capacity Voltage Group(kV) Connection Method Loss (kW) No-load current Impedance Voltage Weight (kg) (mm) Gauge
(L) (W) (H)
(kVA) HV LV No-load Load % % Machine Oil Gross Dimension Vertical Horizontal
10 0.065 0.4 3.5 90 55 220 650 450 880 400 350
20 0.08 0.52 3 140 60 270 720 490 950 400 350
30 0.1 0.63/0.6 2.3 185 70 330 750 490 970 450 340
50 0.13 0.91/0.87 2 260 80 430 770 550 1030 450 380
63 0.15 1.09/1.04 1.9 260 85 440 800 600 1040 450 380
80 0.18 1.31/1.25 1.9 320 95 520 790 600 1070 450 430
100 0.2 1.58/1.5 1.8 355 100 570 830 640 1050 550 450
125 11 0.24 1.89/1.8 1.7 425 115 675 1070 700 1150 550 470
160 10.5 0.28 2.31/2.2 1.6 510 130 790 1120 700 1220 550 520
200 10 0.4 Yyn0 0.34 2.73/2.6 1.5 550 145 850 1080 690 1160 550 520
250 6 0.69 Dyn11 0.4 3.2/3.05 1.4 630 165 985 1160 740 1190 650 550
315 6.3 0.48 3.83/3.65 1.4 755 190 1155 1230 800 1240 650 550
400 0.57 4.52/4.3 1.3 910 225 1405 1310 860 1250 650 550
500 0.68 5.41/5.15 1.2 1050 240 1600 1370 890 1350 750 600
630 0.81 6.2 1.1 4.5 1250 310 1945 1580 1060 1310 850 660
800 0.96 7.5 1 1540 365 2350 1640 1060 1500 850 660
1000 1.15 10.3 1 1690 405 2645 1720 1160 1540 850 660
1250 1.36 12 0.9 1965 560 3230 1790 1160 1740 850 660
1600 1.64 14.5 0.8 2355 650 3805 1830 1190 1850 850 700
2000 1.96 19.8 0.8 2570 615 4245 2190 1900 1950 820 820
2500 2.31 23 0.7 3130 810 5280 2180 1940 2250 1070 1070
Yuebian Electric Co.,Ltd, approved by ISO9001, is a power transformer supplier china in China. We provide power transformer, dry transformer, china oil type transformerchina 10kv transformer, china
oil transformer, china compact transformer, china transformer oil, china 33kv substation, china transformer tank and etc. Want to know more ? Contact us.
