HC-320A Blank Label Turret Slitter Rotry Die Cutter

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

HC-320A Blank Label Turret slitter die Cutter

This slitter is ideal machine for the adhesive label, paper roll slitting.

Features of HC-320A Blank Label Turret Slitter Rotry Die Cutter

Use of HC-320A Automatic Blank Label Slitting Rotary Die Cutting Machine

HC-320A Automatic Blank label slitting rewinding machine with Turret is the most ideal machine for label slitting.

It have other functions such as: automatic inspection, automatic correcting, automatic counter etc, can be finished in once process.

Characteristic of HC-320A Automatic Blank label slitting machine

Synchronous belt transmission, can assure the noise much smaller.

1 inch ,2 inch ,3 inch tube all can be used for this type machine .

Air shaft rewinding .

Taper tension controller adopted for more friendly tension control of unwinding and rewinding unit .

EPC/LPC uses photocell correction.

Specifiction HC-320A Blank Label Turret Slitter Rotry Die Cutter

Technical parameter:

Machine model HC-320A

Slitting speed 120m/min

Die cutting speed 80m/min

Max unwinding width 320mm

Rewinding roller diameter(2 rollers) 2*φ220mm

Rewinding roller diameter (1 roller) φ480mm

Unwinding roller diameter φ550mm

Precision ±0.15mm

Voltage 220V, 1 phases, 50hz

Total power About 2.5kw

Machine weight About 500kg

Installation dimension 1600*1100*1700mm

Ruian Loyal Machinery Co, Ltd., is a professional slitting machine manufacturer, we provide cutting and slitting machine, copper foil slitting machine, Raloyal slitting machine, flexographic label printing machine and etc. Contact us to know more.

Country: China (Mainland)
Business Type: Manufacturer
Market:Americas,Europe,Asia,Middle East
Founded Year:2009
Address:No 88,jinyuan Road,Dongshan Economic Development Zone,Ruian city Zhejiang province,China
Contact:lyslitter

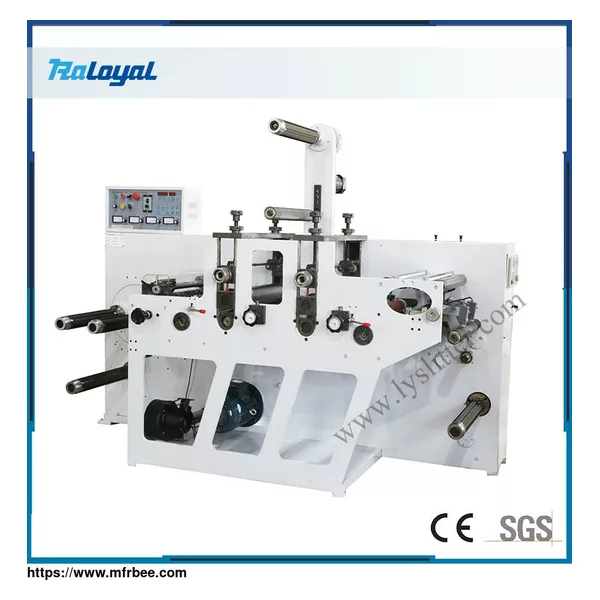

HC-320A Blank Label Turret Slitter Rotry Die Cutter
