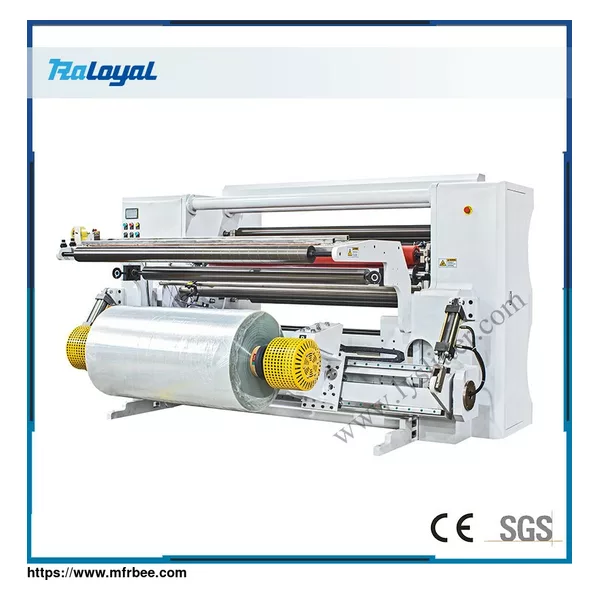

HCH2-1300 High Speed Slitting Machine with Friction Shaft
HCH2 high speed slitting and rewinding equipment is our most popular and hot selling machine in the market, which can slit both label sticker, paper and flexible film in optical and electrical
industry with the most competitive price. Automatic loading, friction shaft re.
Features of HCH2-1300 High Speed Slitting Machine with Friction Shaft
Application of HCH2-1300 High Speed Slitting Machine
· Raw paper, release paper, paper board
· Adhesive paper
· Protective film
· PET, PVC, etc. film
Features of HCH2-1300 High Speed Slitting Machine
HCH2 series slitting machine adopted a German Siemens control system with a high level of automatic.
Double-bead friction shaft rewinding, sectional tension control, anti-scratch function.
2 servo motors control, high speed, and high quality.
Specifiction HCH2-1300 High Speed Slitting Machine with Friction Shaft
Technical parameter
1 Machine model HCH2-1300 HCH2-1600
2 Slitting effective width 30-1300mm 30-1600mm
3 Max Slitting speed 300m/min 300m/min
4 Unwinding diameter
Φ1200mm (shaftless loading )
Φ1200mm (shaftless loading )
5 Rewinding diameter 2*φ600mm 2*φ600mm
6 Main motor 4kw 4kw
7 Rewinding motor power 11KW 11KW
8 Total power 16kw 16kw
9 Precision ±0.03mm ±0.03mm
10 Machine weight 3500kg 4000kg
11 Installation dimension 2850*3000*1750mm 3250*3000*1750mm
Ruian Loyal Machinery Co, Ltd., is a professional slitting machine manufacturer, we provide paper rewinder for sale, copper foil slitting machine, hci slitting machine, Ruian Loyal packing
solution, flexographic label printing machine and etc. Contact us to know high speed slitting machine price or more.
