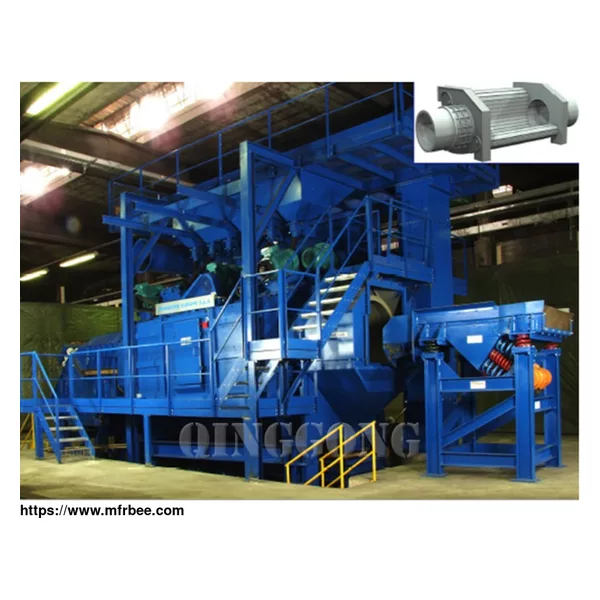

CONTINUOUS TUMBLE PASS-THRU SHOT BLAST MACHINE
Product Quick Detail
- Minimum Order
- 100
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
The through-feed blast cleaning process offers a number of distinct advantages and ensures efficient and cost-effective blast cleaning. Tumble shot blasting machine automate production sequences
and improve the work environment. Workpiece dwell-time and abrasive throughput rates are controlled by the volume of castings. This results in the best possible cleaning effect and minimal wear on
machine components and abrasive. Automatic adaptation to production rate is a standard feature.
Continuous Tumble Pass-Thru Shot Blast Machine Basic Specifications
Technical data QGCT4-14
Single part maximum dimension 700mm(L)×600mm(W)×500mm(G)
Diameter of tumble belt 1600mm
Blast wheel types KT36,38,42 and 50
numbers of blast wheels 2/4/6
power of blast wheels 22kw/45kw/50kw
In order to greatly convenient the tumble of the workpieces, the equipment adopts the new patented technology of four-axis structure.
The thumb last belt adjustment uses the automatic cylinder tension device.
The tumble belt rotates speed is adjustable by a frequency inverter, which is adjusted according to the different workpieces actual conditions.
The belt is composed by the thickness of 20mm high manganese plate, the holes on the belt are cut by water jet cutter in order to prevent the deformation, the chainring adopted a unique structure
so as to let the spattered blasting media drop into the abrasive reclaim system.
The loading/unloading oscillating screen is to load
and unload workpieces into the blasting unit.
The loading capacity of the equipment is no more
than 200kg which is also a continuous type.
It is aimed for the conveying of the workpieces and
separating the big contaminants from the workpieces
The tumble belt rolling drum liner adopt high manganese steel plate, the rotation of the drum use the heavy-duty bearings to ensure the stability and durability of usage. The holes in the drum are
cut by water jet cutter in order to convenient the abrasive reclaim.
Now the price of tumble blast machine is affordable, if you have needs, please contact us.
As a shot blasting manufacturer, we also have types of sand blasting machine dubai for sale, if you are interested, please leave us a message.
