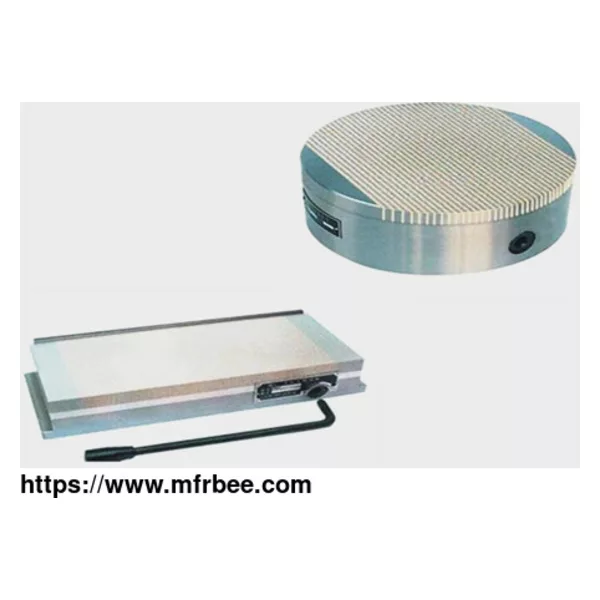

Permanent Magnetic Chucks

Place Of Origin: China

Minimum Order: 1

Packaging: standard package for magnets

Delivery: 15 Days

Rectangle Permanent Magnetic Chucks:

Item Code B Width L Length Effective

Length H Height H1 Top plate height F G Pole Pitch Net Weight

PMCR-1018 100 175 145 52 20 10 10 1+3 8

PMCR-1325 125 250 213 52 20 10 10 1+3 14

PMCR-1515 150 150 117 52 20 10 10 1+3 9

PMCR-1530 150 300 257 60 23 10 10 1+3 21

PMCR-1535 150 350 305 60 23 10 10 1+3 25

PMCR-1540 150 400 357 60 23 10 10 1+3 28

PMCR-1545 150 450 405 60 23 10 10 1+3 32

PMCR-2030 200 300 257 60 23 10 10 1+3 28

PMCR-2035 200 350 305 60 23 10 10 1+3 33

PMCR-2040 200 400 357 60 23 10 10 1+3 37

PMCR-2045 200 450 405 60 23 10 10 1+3 43

PMCR-2050 200 500 457 60 23 10 10 1+3 53

PMCR-2063 200 630 585 60 23 10 10 1+3 69

PMCR-2535 250 350 305 60 23 10 10 1+3 47

PMCR-2540 250 400 357 60 23 10 10 1+3 53

PMCR-2563 250 630 585 60 23 10 10 1+3 86

Circular/Round Permanent Magnetic Chucks:

Item Code Diameter Effective

Length Height Pole Pitch D2 K N M D3 Net Weight

PMCC-150 150 117 50 1+3 110 4 4 8 132 7

PMCC-160 160 129 50 1+3 120 4 4 10 140 8

PMCC-200 200 169 52 1+3 160 4 4 10 180 12

PMCC-250 250 213 52 1+3 200 4 4 10 230 19

PMCC-300 300 265 54 1+3 250 4 4 12 280 28

PMCC-400 400 365 58 1+3 320 4 4 12 380 53

PMCC-600 600 553 62 1+3 500 4 4 12 580 134

Ningbo Beilun Meank Magnetics Co., Ltd is located in the home of Neodymium-Iron-Boron magnets -Ningbo City. We're engaged in the production of rare earth neodymium magnets for over 10 years.

As a reliable holding magnets manufacturer, we have types of related products for sale, if you have needs, please contact us.

Country: China (Mainland)
Business Type: Manufacturer,Trading Company
Market:Europe,Americas
Founded Year:2013
Address:1FLOOR,NO.128 BUILDING-1 128#, JIJIN ROAD,XIAOGANG,BEILUN,NINGBO
Contact:meankmagnet meankmagne
