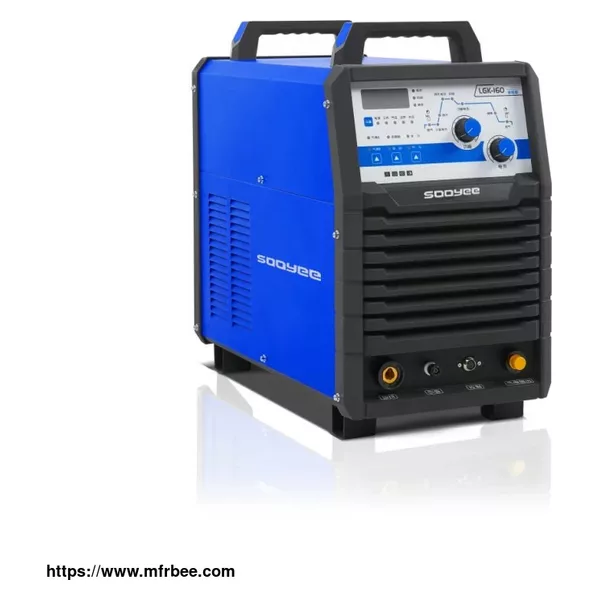

Welding machine LGK160

Installation Precautions
＞Input voltage: AC3~380V±10%, 50/60Hz
＞Input cable: ≥6.0mm², length ≤5m
＞Distribution switch: 63A
＞Output cable: 25mm², torch length≤20m
＞Ambient temperature: -10℃~+40℃
＞Use environment: the air inlet and outlet can not be blocked, no direct sunlight exposure

Features of Welding machine LGK160

＞Adopt IGBT module soft switching technology, the whole machine is stable and reliable

＞Specially designed for portable CNC cutting

＞High duty cycle, suitable for long time cutting operations

＞Non-contact high-frequency arc ignition, high arc success rate and low interference

＞Precise preset cutting current, infinitely adjustable, suitable for workpieces of different thicknesses

＞Wide grid voltage adaptability, very stable cutting current and plasma arc

＞Good characteristics, good arc stiffness, smooth incision, excellent cutting process performance

＞It has the function of current slowly rising during arc cutting, which can reduce the impact of arcing and reduce the loss of cutting tip.

＞Humanized, beautiful appearance design, more convenient operation

＞Three-proof design for key components, suitable for various harsh environments, stable and reliable operation

Product parameters of Welding machine LGK160

Product Type	LGK-160
Input Power Source	Three-phase 380V
Rated Input Capacity	29.2KVA
Inverting Frequency	20KHZ
No-Load Voltage	340V
Duly Cycle	60%
Voltage Range	25-160V
Arc method	High frequency non-contact arc ignition
Power cooling method	Forced air cooling
Cooling mode of adjustable gun	Air-cooled
Quality cutting thickness	≤40mm
Efficiency	80%
Insulation Class	Class F
Dimensions	650X335X575mm
Weight	43KG

Welding machine external connection diagram
