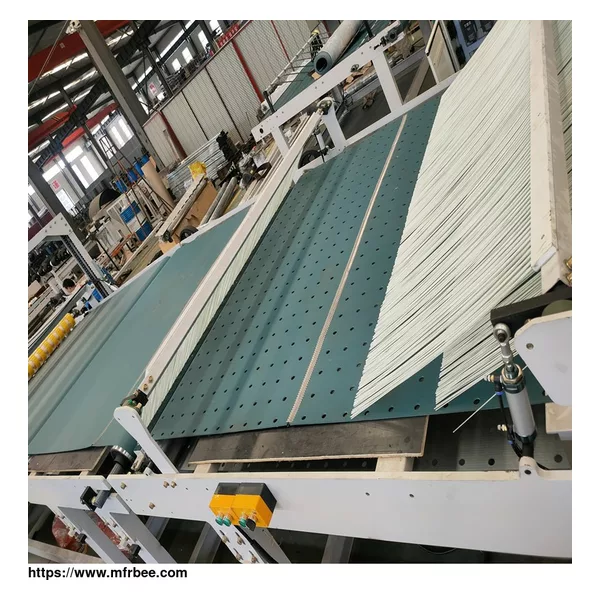

Huatao Automatic Stacker
Product Quick Detail
- FOB Price
- USD $5,000.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- wooden box
- Delivery
- 30 Days
Specifications
Huatao Group - Corrugator Belt & Spare Parts
Web: www.htwirebelt.com www(dot)htwirebelt.com
Email:maple@huataogroup.com maple(at)huataogroup.com
Tel: 0086 133 8311 0583
WhatsApp: 0086 133 8311 0583
Automatic Stacker available breadth: 1400-2200mm
Specification:
Frequency conversion motor auto down stacker
Applicable to be production line whose max speed is 180m/min
Max sheet length: 3500mm, max stacking height: 1500mm
Connected with production management system, it can read order and change order, which make the orders apart correct and fast. it also can work by itself
Stacking of multi orders
Conveyer belt was separated to be 4 sections, driven by ac frequency conversion motor, running synchronized with the production line, it brings the suitable stack proportion according to the sheet length, which make paper board stack in good order
Transducer control the frequency conversion motor to drive the roller running，speed up and down stably, board come out easily，hard to be overturn
Transducer control the brake motor to drive the elevator，with counterbalance，speed up and down stably, speed counterchanges reasonably, make stacking more free and get rid of the paper board crease, improved the life of machine
Rolls forms close, and lift with elevator, to reduce the waste
Gross power: 30kw
| WIDTH（MM） | DIMENSION (L X W X H)（MM） | WEIGHT（T） | GROSS POWER（KW） |
| 1400 | 17000×2400×3200 | 9 | 24 |
| 1600 | 17000×2600×3200 | 10 | 24 |
| 1800 | 17000×2800×3200 | 11 | 24 |
| 2000 | 17000×3000×3200 | 12 | 24 |
| 2200 | 17000×3200×3200 | 13 | 24 |
- Country: China (Mainland)
- Business Type: 制造商,贸易公司
- Market:非洲,美洲,亚洲,新兴市场,欧洲,欧洲联盟,G20,中东,大洋洲
- Founded Year:2008
- Address:Zhonghua North Street
- Contact:Lida Zhang
