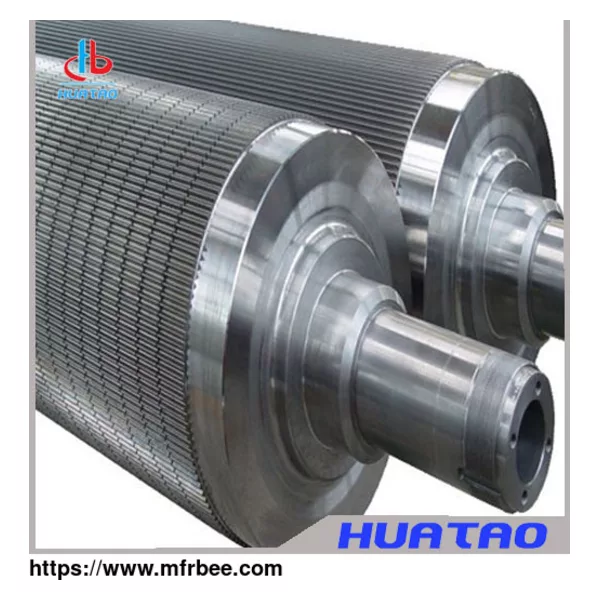

Corrugating Roll
Product Quick Detail
- FOB Price
- USD $700.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- wooden box
- Delivery
- 30 Days
Specifications
Huatao Group - Corrugator Belt & Spare Parts
Web: www.htwirebelt.com www(dot)htwirebelt.com
Email:maple@huataogroup.com
Tel:0086 133 0311 0583
WhatsApp:0086 133 8311 0583
Product Parameters of Single Facer Corrugated Roller Flute Type
| Flute Type | Flute | Teeth/300mm | Height of Flute |
| A | UV | 30±2 | 4.6-4.9 |
| C | UV | 39±3 | 3.6-3.9 |
| CB | UV | 44±2 | 3.0-3.4 |
| B | UV | 50±2 | 2.6-2.9 |
| BE | UV | 66±3 | 1.9-2.1 |
| E | UV | 90±10 | 1.1-1.5 |
| F | UV | 124±10 | 0.7-0.8 |
| G | UV | 185±12 | 0.5-0.65 |
| N | UV | 200±15 | 0.4-0.5 |
| O | UV | 267 or design | 0.25-0.35 |
Description:
Tungsten Carbide Corrugating Rolls of Single Facer Machine are highly efficient as they symbolize the most advanced technological development of the Automatic Corrugation Machine Lines. The combination of High Precision Grinding and Cobalt Tungsten Coating enhances the life of the rollers and is economically viable on the production frontier.
Peripheral Heating Corrugated Roll is made of high-quality alloy steel& it is a new technology comes recently. It's made by high precision CNC corrugated roll griding machine from the USA. The quality is very good . It is treated by special corrugated roll surface-treated technology. The hardness is very high. High-speed corrugated roll with a big diameter. The maximum working speed is 300 m/min. Gear typr: UV, V. Flute type: A, B, C, BC, D, E, F optional. Fingerless suction ang inner suction are optional. We are engaged in the design, repair, and manufacture of all kinds of corrugating rolls.
- Country: China (Mainland)
- Business Type: 制造商,贸易公司
- Market:非洲,美洲,亚洲,新兴市场,欧洲,欧洲联盟,G20,中东,大洋洲
- Founded Year:2008
- Address:Zhonghua North Street
- Contact:Lida Zhang
