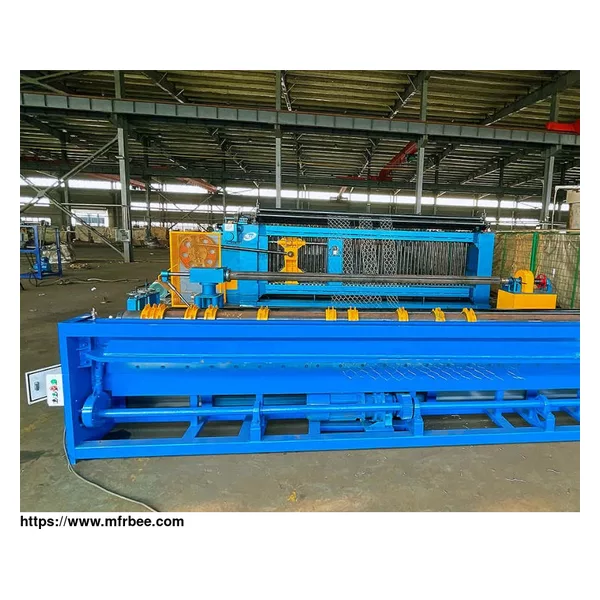

Gabion Mesh Weaving Machine
Product Quick Detail
- Minimum Order
- 120
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Gabion box machine to produce hexagonal wire mesh, then to fold and connect each other net to complete gabion box mesh machine.
The basic working principle of automatic gabion mesh hydraulic press machine is horizontal wire netting and interlacing with vertical wire. Gabion machine and gabion mesh machine is widely used
for water engineering, hill mountain protection and mining protection, etc in all over the world, the gabion box is more economic than concrete products. Gabion machine includes wire pay-off
frame, wire pay-off, wire tension machine, main netting machine and net winding machine, the workshop size usually requests 32x15x6 meters (LXWXH).
Metal Tech gabion mesh machine use heavy duty raw materials like gear box, beam, and high-quality raw material like casting steel, quenching iron, etc. All parts are fine treatment. And we always
offer reasonable gabion mesh machine cost for all of our clients. Choose good price and quality gabion mesh machine.
Automatic gabion wire mesh machine price direct from China gabion mesh machine manufacturers, inquiry now！
Specifications of Gabion Wire Mesh Machine
Mesh Size
(mm) Max. Netting
(mm) Max.Dia of Weaving wire
(mm) Max.Dia of Bordering wire
(mm) Max Weaving-
vein No. Power
(kw) Real Production Capacity Exterior Size
(m) Weight
(T)
L×W×H
60×80 4500 2.7 4.0 3/5 30 400-400 Sq.m /Hour 6.8×1.4×2.4 13
5500 2.7 4.0 3/5 30 500-550 Sq.m /Hour 7.8×1.4×2.4 14
80×100 4500 3.0 4.0 3/5 30 480-520 Sq.m /Hour 6.8×1.4×2.4 13
5500 3.0 4.0 3/5 30 480-520 Sq.m /Hour 7.8×1.4×2.4 14
100×120 4500 3.5 4.0 3/5 30 560-600 Sq.m /Hour 6.8×1.4×2.4 13
5500 3.5 4.0 3/5 30 560-600 Sq.m /Hour 7.8×1.4×2.4 14
Technology of Automatic Gabion Mesh Hydraulic Press
Machine: Metal tech adopt advantage technology for gabion press machine, we designed press machine suit for transportation gabion box using the forklift and crane both, and we offer high-pressure
gabion press machine, which can pack more 15% space gabion box than normal type.
Available Materials of Gabion Tech in the Quality Gabion Mesh Weaving Machine
Metal tech gabion machine available for different kinds of wire, like low carbon galvanized wire, steel wire, PVC coated wire and galvanic wire which tension force to be 1780N, we have full
confidence according to our high technology gabion machine.
Advantages of Gabion Wire Mesh Machine
Gabion wire mesh machines use high-quality material parts, such as NSK bearing, PARKER hydraulic system, quenching and brazing half gear etc, strict quality management all these guarantee
superior quality and long performance gabion machine life. Inquriy wire mesh machine price now.
Advantages of Metal Tech Gabion Mesh Machine Manufacturers
Metal Tech is one of the professional gabion wire drawing machine manufacturers in China for many years. Our gabion wire mesh machines are of high quality and meet different demands from overseas
and board. We can quickly organize the gabion production line of screen weaving machines with special specifications for customers, no matter how large or small the quantity is. Metal Tech Gabion
wire mesh machines make us one of the famous gabion wire mesh machine bulk factory in China. Inquiry now and get wholesale gabion mesh machine price now.
Gabion Wall Wire Mesh Machine Application
Gabion wall mesh wire making machine for Bank protection: gabion structure is a very successful example of river bank protection and slope protection, which gives full play to the advantages of
gabions and achieves ideal results that cannot be achieved by other methods.
Gabion wall mesh machine for protection of scenic spots: gabions applied in urban areas or scenic spots can help protect buildings from erosion. In urban rivers, some people use gabions to build
embankments, which are both space-saving and neat and beautiful, and the mesh boxes with exposed stones are close to nature.
Gabion wall mesh machine for flood control: Gabions can be folded and transported, and after transported to the site they can be directly formed into cages and then used to block river water,
making them a good protective structure.
Production Process of Gabion Wire Mesh Machine
Wire Pay Off
Tension Machine
Main Machine
Net Winding Machine
Spiral Coiling Machine
Details of Gabion Wire Mesh Machine
Wire Mesh for Gabion Wall Machine
Container Loading of Gabion Wire Mesh Machine
Metal Tech Care of Gabion Mesh Machine
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa
- Founded Year:
- Address:Rm512 No.:238 ChaoWwang Road HANGZHOU 310005 CHINA
- Contact:wiremachinecn com
