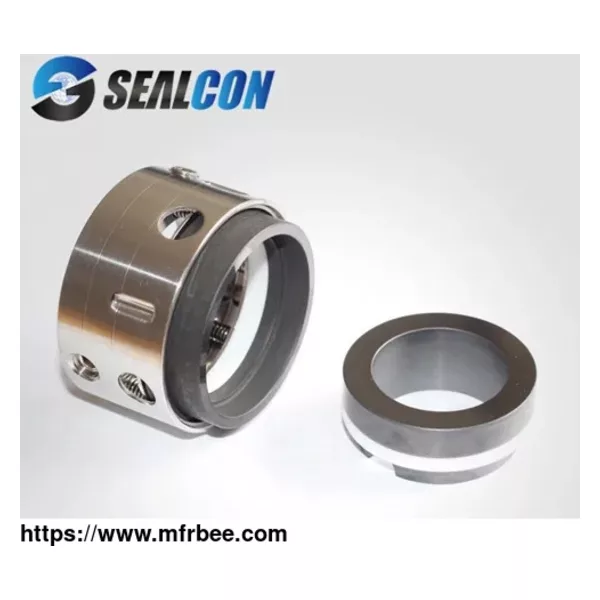

Mechanical seal for pump is a kind of dynamic seal assembly, which is widely used on the rotating shaft. It is also known as the end seal. Consisting of at least a pair of end faces which are
perpendicular to the rotating shaft, mechanical seal acts on the end surface through fluid pressure and compensation mechanism (elastic force or magnetic force). In addition, auxiliary seal makes
the joint surface stick and keep relative sliding, so as to prevent fluid leakage.
Different Types of Water Pump Seal
Elastomer Rubber Bellow Mechanical Seals
Developed with rubber bellow, this type of seal is widely used for water, oil and other light duties applications. Both standard and OEM elastomer bellows seals are available.Most of our rubber
bellow seals can easily replace your pump seal.
Metal Bellow Mechanical Seals
Compared with common pusher seals, metal bellow seals have more advantages. The structure eliminates seal hang-up and has a long service life. It is widely used in high temperature application.
Browse the page to see more about our products.
PTFE Teflon Bellow Mechanical Seals
Sealcon supplies PTFE bellow seal manufactured of high quality raw materials and modern technology. It's design has small friction resistance. This type of seal can be applied to chemical
industries.
Single Cartridge Seals
Sealcon carries high-quality single cartridge seals that suit all types of pumps. Our single cartridge seals are easy to install and maintain. Our products are designed and manufactured in various
specifications and caters to meet the different requirements of our clients.
O Ring Mechanical Seals
Choosing the correct o-ring can well avoid the leakage problems. We supply a wide range of o-ring seals that are different in styles and shapes. Choose our cersatile but cost-effective products to
get your project started!
Double Cartridge Mechanical Seals
The working principle of mechanical seal for pump is to form the thin liquid film between rotating ring and shaft, so that it can efficiently prevent leakage of medium and make the end face
lubricated, which help achieve the sealing effect. Mechanical seals are often used in rotating machinery, such as pumps, compressors, and reaction stirred kettle.
Mechanical Seal Function in Pump
There are 2 common sealing methods of the pump: mechanical seal and soft packing seal. Each of them has different characteristics and they are also suitable for different occasions. The correct
selection of mechanical seals is beneficial to reducing the cost and improving the working efficiency.
Compared with the soft packing seal, the mechanical seal for pump has the following advantages:
1. Good sealing function. In the long working, the sealing state of mechanical seals for pump is very stable, and the leakage is small: about 1% of the leakage of soft packing seal;
2. Long service life. The general service life can reach more than 1~2 year when used in oil and water working occasions; and the mechanical seals should have 6-months service life when used in
chemical medium;
3. Small consumption of friction power. The friction power of mechanical seals for pump is only 10% ~ 50% of the soft packing seal. And the abrasion of the shaft or sleeve can be negligible;
4. Long maintenance period. The mechanical seals for pump can still meet the requirements of usage, even thought its end face is in a certain range of repair;
5. Good earthquake resistance. It is not sensitive to the vibration of the rotating shaft.
Mechanical seals for pump have complex structure, higher requirements and cost. And the operators needs to have a certain level of technology, such as the basic knowledge of fitter and the
characteristics of the mechanical seal.
Hangzhou Sealcon Fluid Machinery Co., Ltd is a professional cartridge seal supplier, we provide agitator mechanical seal design, bellow type mechanical seal and etc. For water pump seal or more
information, please feel free to contact us!
