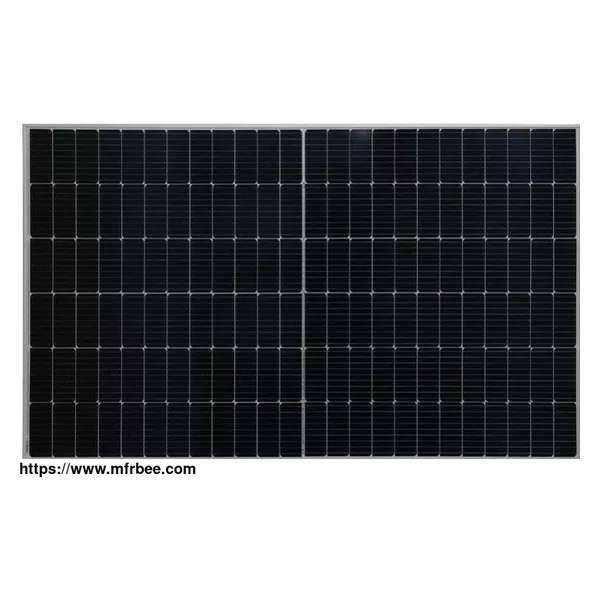

PVB double glass module
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- N/A
Specifications
PVB double glass module
Half-cell battery technology, brand new circuit design.
Super frame, can bear 5400Pa mechanical load test.
Drainage system design to prevent deformation and cracking of the frame due to freezing.
Significantly reduce the risk of hot spots and reduce power loss.
Excellent anti-PID performance and strict quality control ensure the high reliability of the product
| model | FY166M440-72 | ||
| 72 version (9BB-166) | Standard test conditions：AM1.5,E=1000W/m2，TC=25℃ | ||
| Pmax | 440W~450W | Maximum system voltage | 1500V |
| Tolerance range | 0~5W | Maximum system current | 20A |
| Vpm | 41.2V | Operating temperature | －40~85℃ |
| Ipm | 10.7A | Cell type | Monocrystalline silicon |
| Voc | 49.3V | Weight (Kg) | 25.2kg |
| Isc | 11.2A | Specification (mm) | 2089*1033*5.3 |
