Clear PVC 45° Elbow

Clear PVC 45° Elbow

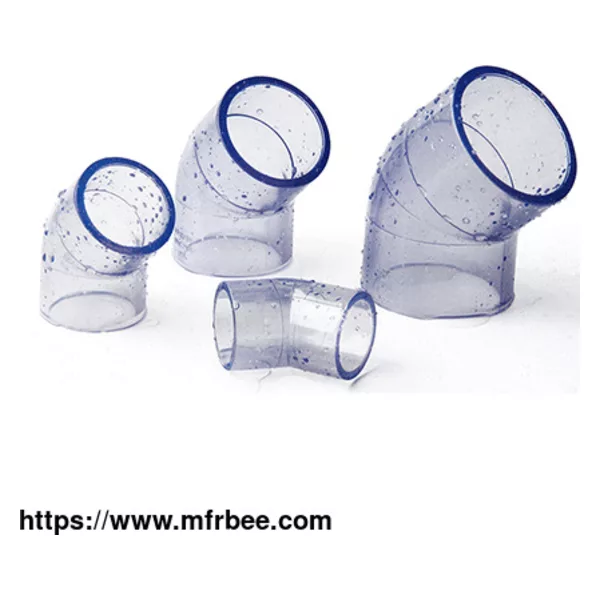

VERYGREEN can offer high-quality Clear Pvc 45° Elbow to meet your different needs.

The difference between clear PVC elbow lies in the different angles of the elbow. According to the actual construction situation, choose different angle elbow products. For example, the direction of the pipeline, if a 45-degree turn is required, a 45-degree elbow is selected.

The use of glue bonding, convenient and fast construction

The bonding area is also transparent and visible, avoiding blind spots on vision

The bonding pressure is enough, which does not affect the normal use and will not lead to the pressure drop of the whole pipeline system

Difference between a Clear 90° PVC Elbow and a Clear PVC 45°Elbow

The extension lines of the two nozzles of the clear 90° PVC elbow are vertical, while the extension lines of the two nozzles of the clear 45° PVC elbow intersect at an acute angle. Look at the takeover: the 90 degree elbow forms a right angle after taking over the pipe, and the clear 45° PVC elbow forms an obtuse angle after taking over the pipe. If a clear 90° PVC elbow is used for the through-wall drainage pipe, it will not only cause a lot of noise under the condition of large drop and large water flow but also a great impact on the elbow part if the water flow is large or there are foreign objects. The force may cause the elbow to rupture. When a clear 45° PVC elbow is used, a certain slope is formed at the corner, which acts as a buffer. Even if the water flow is large and foreign matter is included, the impact on the pipe wall at the elbow will be greatly reduced.

Dimension of Clear PVC 45° Elbow

Parameter of Clear PVC 45° Elbow

SIZE D d d1 d2 I

1/2" 29.5 16 21.54 21.23 24

3/4" 35.2 22 26.87 26.57 27

1" 43 30 33.65 33.27 30

1 1/4" 53.2 38 42.42 42.04 34

1 1/2" 60 44 48.56 48.11 37

2" 72 54 60.63 60.17 41

2 1/2" 88 67 73.38 72.85 46.5

3" 108 82 89.31 88.7 50

4" 132 106 114.76 114.1 60

5" 164 133 141.81 141 77

6" 191 158 168.83 168 79

DIN

SIZE D d d1 d2 I

DN15 27 16 20.3 20.1 16

DN20 32 21 25.3 25.1 20

DN25 40 28 32.3 32.1 24

DN32 50 36 40.3 40.1 28

DN40 63 46 50.3 50.1 32

DN50 75 57 63.3 63.1 38

DN65 90 70 75.3 75.1 44

DN80 110 86.1 90.3 90.1 51

DN100 127 106.1 110.4 110.1 61

DN125 162 133 140.5 140.2 77

DN150 186 154 160.5 160.2 86

As a clear pvc pipe manufacturer, we have types of clear plastic pipe fittings for sale, if you have needs, please leave us a message.
