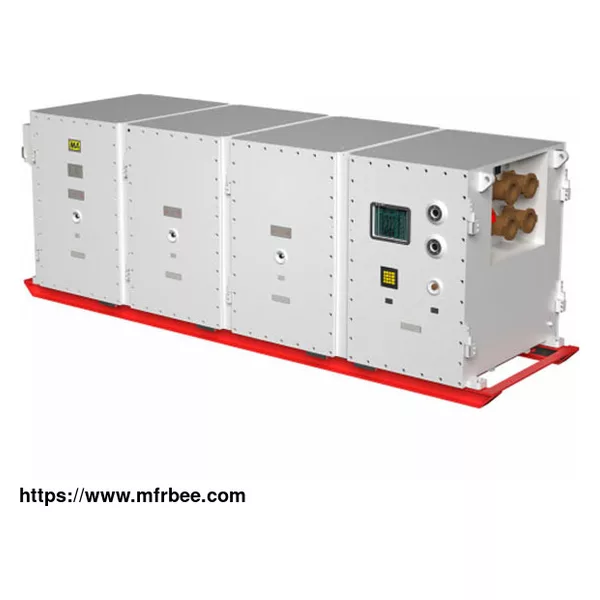

Explosion Proof VFD
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
The explosion proof VFD is committed to intelligent control of mining. Our explosion proof electric motor can improve the efficiency of the equipment, and reduce the maintenance of the complete set
of equipment. The explosion proof electric motor operates reliably to ensure production safety. Our ATEX and IEC explosion-proof motor has advanced design concepts and independent intellectual
property rights, and have reached the international advanced level in terms of functionality and reliability.
Explosion Proof Motor Specifications
Input Voltage 660V/1140V
Input Frequency 50Hz/60Hz
Output Voltage 0-660V/1140V
Output frequency 0-50Hz/60Hz
Power semiconductor IGBT, Diode
Input side of VFD Standard:6 pulse diode rectifier
Option:6 pulse IGBT rectifier
Quadrant Standard:2-Q
Option: 4-Q
Frequency Resolution 0.01Hz
Overload capacity 220%
Communication Internet、CAN、RS485
IP IP54, water cooling.
Features of the Explosion Proof VFD
The software system of explosion proof electrical equipment has built-in control programs such as a scraper, conveyor, and pumping station;
Direct torque control has high control precision, fast dynamic response speed, and output torque greater than 2.2 times rated torque, which is suitable for heavy load starting occasions.
Explosion proof VFD adopts CAN bus communication to realize master-slave control and power balance of multiple devices, and optical fiber communication is supported to realize data transmission and
control;
ATEX explosion proof VFD uses Long-life thin-film capacitors;
This electrical transmission equipment has various protection functions such as overload, overvoltage, under-voltage, phase shortage, overheating, power imbalance, short circuit, etc.
Our ATEX explosion proof VFD is equipped with high quality explosion proof electrical panel, connectors, enclosures, junction boxes, outlets and other explosion proof electrical boxes and fittings.
Explosion Proof Electric Motor Classifications / explosion proof motor classifications
The types of explosion-proof electric motors can be classified according to the following aspects:
1. Principle of motor
Explosion proof VFD motor can be divided into explosion-proof asynchronous motor, explosion-proof synchronous motor and explosion-proof DC motor.
2. Place of use
Explosion proof VFD motorcan be divided into explosion-proof motors used in coal mines and explosion-proof motors used in factories.
3. Explosion-proof principle
Explosion proof VFD motor can be divided into flameproof motor, increased safety motor, positive pressure motor, spark-free motor and dust explosion-proof motor.
4. Matching mainframe
Explosion proof VFD motor can be divided into explosion-proof motor for coal mine conveyor, explosion-proof motor for coal mine winch, explosion-proof motor for scraper, explosion-proof motor for
local fan in coal mine, explosion-proof motor for fan, etc. In addition, it can also be divided according to technical indicators such as rated voltage and efficiency, such as high-voltage
explosion-proof motor and low-voltage explosion-proof motor.
How to choose An Electric Explosion Proof Motor?
Selection principle of explosion-proof electric motor
1. Identify the nature and types of application places.
2. For gas explosive places, zoning should be determined according to the degree of danger.
3. Identify the temperature group of the application place.
4. For flameproof, safety-increasing and positive pressure ventilation explosion-proof motors, the use places should be considered are class or class; Spark-free motor and dust explosion-proof
motor can only be used in similar places.
5. Identify the explosion-proof level.
6. If safety-increasing or positive pressure explosion-proof motors are selected, corresponding protection devices should be considered, otherwise the safety of explosion-proof cannot be
guaranteed.
Application of the Explosion Proof VFD
Frequency converter application is very extensive, and explosion proof DC motor also has its own unique uses.
The explosion proof VFD is mainly used for heavy load starting and full speed regulation of scraper conveyor, transfer machine, belt conveyor, coal mine TBM and other equipment with rated voltage
of 3300v / AC1140v / AC660V, and can be used for the emulsion pump station, water pump, endless rope winch, permanent magnet synchronous motor (including electric drum), ventilator and other
occasions requiring frequency conversion speed regulation.
Qingdao CCS Electric Corporation is a professional power control equipment company, we provide flame proof panel box, explosion proof panel box, electrical power transmission equipment,
transmission substation equipment and etc.
