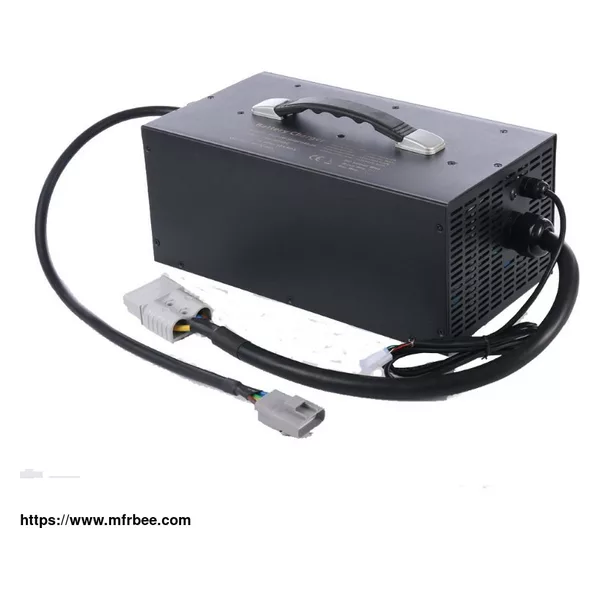

3600W 24V 120A Battery Charger

Product Quick Detail

FOB Price
USD $1.20 / Piece
Place Of Origin
china
Minimum Order
1000
Packaging
PE bag + outer Carton
Delivery
35-40 Days

Specifications

3600W 24V 120A Battery Charger
Typical output: 24V 100A, 24V 120A battery charger

Fully auto 4 stages charging process by MCU controller

4 LED indicate the battery capacity from 25%~100%

Worldwide AC input 100V-240V

Charging stage: Small current pr-charge; constant current charging; Constant voltage charging

The Specifications Of 3600W 24V 1A Battery Charger
Charger Model AC Input Voltage Battery Voltage Max Voltage(V) Max Current (A)
AP-PF3600CH02921200 220 24 29.2 120
AP-PF3600CH04201000 220 36 42 100
AP-PF3600CH05460700 220 48 54.6 70
AP-PF3600CH07140600 220 60 71.4 60
AP-PF3600CH08400500 220 72 84 50
AP-PF3600CH02401200 220 24 29.4 120
AP-PF3600CH03601000 220 36 44.1 100
AP-PF3600CH04800700 220 48 58.8 70
AP-PF3600CH06000600 220 60 73.5 60
AP-PF3600CH07200500 220 72 88.2 50
INPUT AC Input Voltage Range 100V ~ 240V
AC Input Frequency 45~65HZ
AC Power Factor Correction ≥0.98
OUTPUT Output Voltage Range 24V～90V
Output Power Range 120A（Max）
VIBRATION 10～50HZ 2G 10 minutes，X，Y，Z /60 minutes
DIMENSIONS(mm) ( (L)315х(W)180х(H90
Protections Over current protection ,Over Voltage Protection ,Short- circuit Protection Reverse Connection Protection ,Battery open-circuit protection
CERTIFICATIONS Safety Approval: CE ROHS
PACKING DETAILS 9kg/pcs
2pcs/Carton
Carton size: 615*520*235mm

As a power charger supplier, we have types of power supplies china for sale, if you have needs, please contact us.
