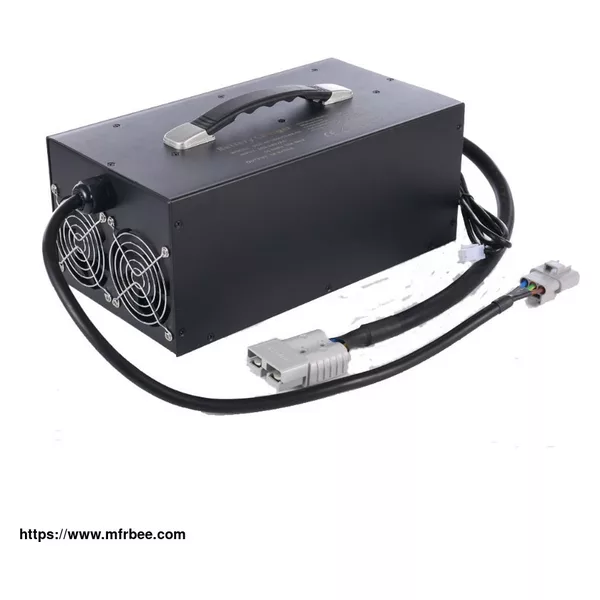

3600W 72V 50A Battery Charger
Product Quick Detail
- FOB Price
- USD $130.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1000
- Packaging
- PE bag + outer Carton
- Delivery
- 35-40Days
Specifications
3600W 72V 50A Battery Charger
Typical output: 72V 50A battery charger
Fully auto 4 stages charging process by MCU controller
4 LED indicate the battery capacity from 25%~100%
Worldwide AC input 100V-240V
Charging stage: Small current pr-charge; constant current charging; Constant voltage charging
The Specifications Of 3600W 72V 50A Battery Charger
Charger Model AC Input Voltage Battery Voltage Max Voltage(V) Max Current (A)
AP-PF3600CH02921200 220 24 29.2 120
AP-PF3600CH04201000 220 36 42 100
AP-PF3600CH05460700 220 48 54.6 70
AP-PF3600CH07140600 220 60 71.4 60
AP-PF3600CH08400500 220 72 84 50
AP-PF3600CH02401200 220 24 29.4 120
AP-PF3600CH03601000 220 36 44.1 100
AP-PF3600CH04800700 220 48 58.8 70
AP-PF3600CH06000600 220 60 73.5 60
AP-PF3600CH07200500 220 72 88.2 50
INPUT AC Input Voltage Range 100V ~ 240V
AC Input Frequency 45~65HZ
AC Power Factor Correction ≥0.98
OUTPUT Output Voltage Range 24V～90V
Output Power Range 120A (Max)
VIBRATION 10～50HZ 2G 10 minutes，X，Y，Z /60 minutes
DIMENSIONS (mm) (L) 315х (W) 180х (H) 90
Protections Over current protection ,Over Voltage Protection ,Short- circuit Protection Reverse Connection Protection ,Battery open-circuit protection
CERTIFICATIONS Safety Approval: CE ROHS
PACKING DETAILS 9kg/pcs
2pcs/Carton
Carton size: 615*520*235mm
As one of 24v 5a battery charger factories, we have types of battery charger for sale, if you have needs, please contact us.
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,Americas,Asia
- Founded Year:2019
- Address:The 8th Building,Hongye Industrial Zone,Jiuwei Village,Xixiang,Bao'an District,Shenzhen,China
- Contact:alrightpower .com
