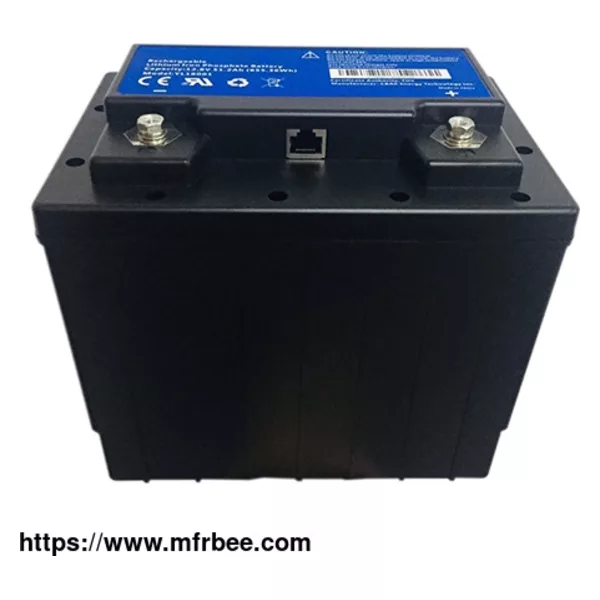

Medical Battery 12.8V/52Ah

Medical equipment battery packs are mainly used in Medical products like Medical vehicle batteries/Emergency X-ray Machine/Portable B Supersonic Diagnostic Set/Medical Infusion Pump, Battery pack voltage include 12V/24V/36V/48V voltage range from 15~100Ah capacity.

Lithium ion batteries for medical devices, produced by lithium battery pack manufacturer, use ACE BMS manage the system with complete protection design to ensure ultra-high safety and reliability, Support I2C/SMBUS/CANBUS/RS484/RS232 Communication with high precision fuel gauge, and warning user to replace the Battery according to remain run time, to keep the system safe and continuous operation.

Medical Batteries, as high-quality li ion battery, can support parallel functions to extend capacity base on application, and support hot-swap function with parallel battery packs, and customers can replace parallel battery packs to keep their device being continuous.

Features of Medical Battery 12.8V/52Ah

Maintained free

Cycle life is long

The capacity is higher than lead-acid

The BMS can communicate with the device

The device controller can monitor SOC% and SOH and so on

PHYSICAL SPECIFICATIONS OF MEDICAL BATTERY

Model Voltage Capacity Dimension (mm) Weight (kg) Case

Minimum Typical Length Width Height

YL18001 12.8 51.0Ah 52.5Ah 210 138 186 6.5 ABS

ELECTRICAL SPECIFICATIONS OF MEDICAL BATTERY

Electrical Features

Charge Charge voltage 14.4±0.1V

Charge current 10.8A

Max charge current 40A ≤2S

Discharge Continuously discharge current 30A

Peak discharge current 40A

Discharge Cut Off Voltage 9.6V

Temperature Charge temperature 0℃～+45℃

Discharge temperature -20℃～+60℃

Storage temperature -10℃～40℃

BMS Protection Over charge/over discarge, over current, over/under temperature, under voltage, short circuit, passive cell balance

Communication SMBus

Now the ecg machine battery price is affordable, if you have needs to buy a high quality ecg machine battery, please contact us.
