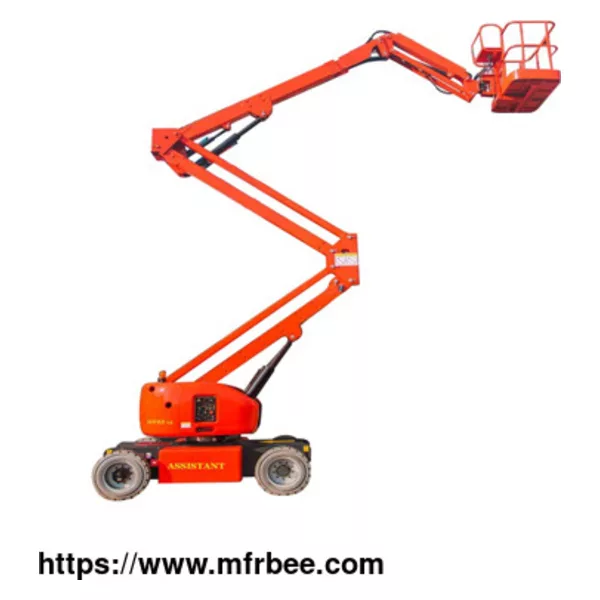

Articulating Boom Lift
Product Quick Detail
- FOB Price
- USD $150,000.00 / Piece
- Place Of Origin
- Shanghai
- Minimum Order
- 1
- Packaging
- NUDE
- Delivery
- 30 Days
Specifications
14M ARTICULATED WORK PLATFORM AERIAL BOOM LIFT
Model GTZZ 14 14M Articulated Work Platform Aerial Boom Lift; Measurements: Working height maximum 15.94m; Platform height maximum 14.24m; Horizontal reach maximum*8m.
16M ARTICULATED WORK PLATFORM COMPACT BOOM LIFT
Model GTZZ 16Z 16M narrow articulating boom lift; Measurements: Working height maximum 17.7m; Platform height maximum 16.0m; Horizontal reach maximum 9.5m.
18M ARTICULATED WORK PLATFORM SELF PROPELLED BOOM LIFT
Model GTZZ 18 18M Articulated Work Platform Self Propelled Articulating Boom Lift; Measurements: Working height maximum 19.7m; Platform height maximum 18 m; Horizontal reach maximum 12.17m.
20M ARTICULATED WORK PLATFORM BOOM LIFT
Model GTZZ 20A 20M Articulated Work Platform Boom Lift; Measurements: Working height maximum 21.22m; Platform height maximum 19.5m; Horizontal reach maximum 11.75m.
22M ARTICULATED WORK PLATFORM BOOM LIFT
We are professional 22M Articulated Work Platform Towable Articulating Boom Lift supplier and factory in China. We can produce articulating booms according to your requirements. 22M Articulated
Work Platform.
24M ARTICULATED WORK PLATFORM BOOM LIFT
Model GTZZ 24Z 24M Articulated Work Platform Boom Lift; Measurements: Working height maximum 25.7m; Platform height maximum 24m; Horizontal reach maximum 13.6m. Platform length-8ft model.
Articulating Booms for Sale
We are professional articulating boom lift manufacturers in China. We can produce towable articulating boom lift according to your requirements. There are two types of Articulated boom lifts
platform: Diesel Articulating Boom Lift and Battery Articulating Boom Lift.
Diesel Articulating Boom Lift
1. Complete Safety Devices: Standard four-link weighing devices; measures such as overload protection, automated detection device for detecting platform amplitude and height, automatic control of
the movement speed and traveling speed of the boom lift, and high-precision weighing devices, to ensure the safety and stability of operation in all directions.
2. Control box: Full proportional control handle and CAN bus as well as PLC control system with high positioning accuracy are easy to be controlled and can be operated by the users at will.
3.Traveling System: The closed running system consisting of electro-proportional variable pump, hydraulic control variable motor and flow distribution valve can gain relatively high movement speed
and relatively low and stable running speed. The system works efficiently and generates less heat.
4. Hydraulic System: Closed running system, speed easily to be adjusted, wide speed range; the boom's hydraulic system adopts double valve core circuit, which enhances the safety. The hydraulic
components adopt European and American pure brands.
Battery Articulating Boom Lift
1. Smaller Structure Size: The power-driven vehicle has smaller width and height (off-running status), which is more suitable for indoor operation.
2. Environmentally Friendly: The electric articulating boom lift takes storage battery as the power source, and makes low noise and no emission, so it can be used indoor and other environments with
special requirements.
3. Hybrid Power (Optional) : The options of generator sets are available, and the generators can be used to charge the storage battery.
4. Manually-operated Emergency Drop Device: The manually-operated pump in the system can be used to descend emergently.
5. Power and Gas Supply in the boom Platform: As per the requirements of users, the platform can be equipped with AC380V power and compressed air pipe, to meet the users' special working
requirements.
We also have types of electric forklift china for sale, anything you need, please leave us a message.
