LFS Ultra Flat Harmonic Gearbox

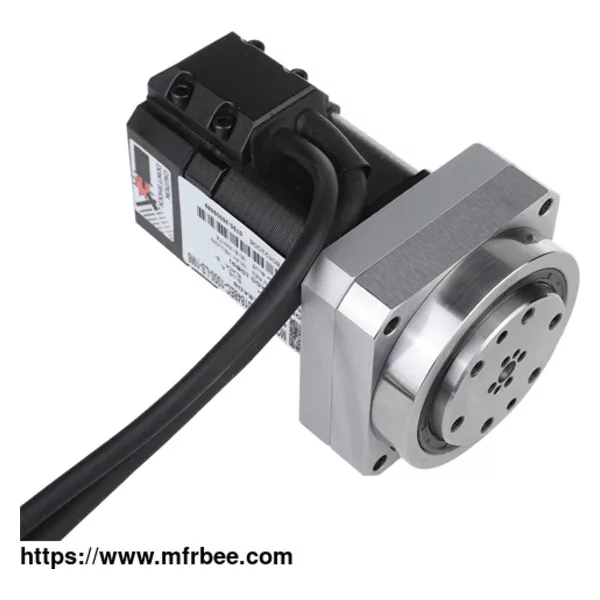

LFS series- this harmonic actuator is a combination product that is lightweight, ultra-flat. It uses cross-roller bearing.

LFS integrated series-Combined strain wave reducer with high performance and small motor, with highest input characteristics under the same gear conditions.

Applications of LFS Harmonic Gearbox/Actuator:

Industrial robots;

Service robots;

Medical devices;

Automation and Special Equipment.

Features of LFS Harmonic Actuator

Ultra flat

Light weight

Small size

Specification of LFS Ultra-flat Harmonic Gearbox

Rated Parameter Table of LFS Series Flat Gearbox

odel Reduction ratio Rated torque at 2000r/min input Permissible peak torque at start and stop Permissible maximum value for average load torque Permissible maximum momentary torque Permissible maximum input rotational speed(grease) Permissible average input rotational speed(grease) Backlash Design life

Nm Kgfm Nm Kgfm Nm Kgfm Nm Kgfm r/min r/min Arc sec Hour

11 50 3.5 0.4 8.3 0.9 5.5 0.6 17 1.7 8500 3000 ≤20 10000

80 5 0.5 11 1.1 8.9 0.9 25 2.5

100 5 0.5 11 1.1 8.9 0.9 25 2.5

14 50 5.4 0.6 18 1.8 6.9 0.7 35 3.6 8500 3000 ≤20 10000

80 7.8 0.8 28 2.9 11 1.1 54 5.5

100 7.8 0.8 28 2.9 11 1.1 54 5.5

Flat Gearbox Drawings

Outer Dimension Drawing of LFS Harmonic Actuator

As one of the planetary gear reducer manufacturers, we provide strain wave gear box, strain wave gearbox, harmonic gearbox design, harmonic drive actuator, nema 17 harmonic drive and etc. Want to know more? Contact us.
