FPV ESC

Highly Integrated & Compact

High-quality Components

BLHeli-S Firmware Ready

DShot150/300/600 Ready

Silent operation

Racing Drone ESC

An electronic speed control or rapid ESC is an electronic circuit that controls and regulates the speed of an electric motor. It may also provide reversing of the motor and dynamic braking. Miniature electronic speed controls are used in electrically powered radio-controlled models. Full-size electric vehicles also have systems to control the speed of their drive motors.

Highly Integrated & Compact

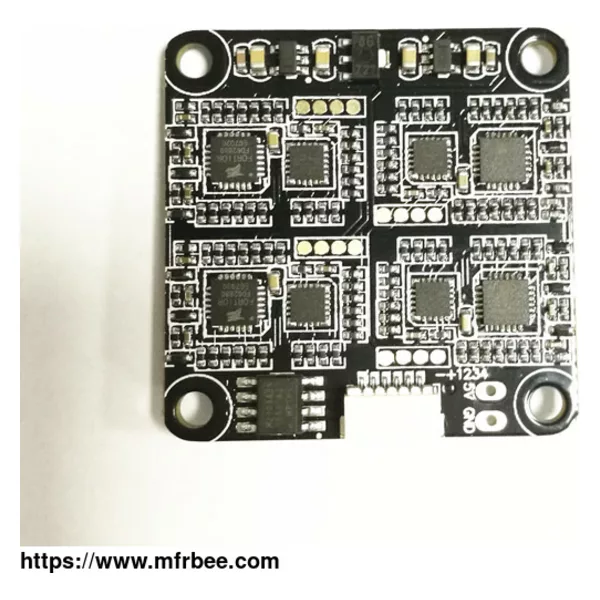

20A 4in1 BLHeli-S DShot600 not only includes 4 high-performance 20A esc fpv, but also a volt monitoring port which allows FC to monitor the voltage in real time (on condition that the FC supports this function).

With the incredibly small size, the installation and wiring can be very simple and easy when pairing it with the Flight Controller. It’s an ESC specially designed for super mini-sized indoor FPV(s).

High-quality Components

The use of EMF8BB21F16G MCUs with the operating frequency of up to

48MHz, imported high quality MOSFETs, 3-in-1 drive ICs and ceramic

capacitors, 3-ounce copper, and 6 layers of PCBs guarantees less heat,

higher efficiency and rapider response.

BLHeli-S Firmware Ready

The ESC (with great performance and rich functions)

uses the original BLHeli-S firmware and supports adjusting

parameters or upgrading firmware via different methods

(i.e. via throttle signal wire with using other development board

or a FC flashed with the Cleanfight / Betaflight firmware).

DShot150/300/600 Ready

Besides the regular PWM mode, Oneshot125/Oneshot42/Multishot modes, the latest DShot150/300/600 modes are also supported. In DShot150/300/600 modes, the ESC has great anti-interference performance and rapid response.

Hardware Generated PWM & Damped Light Mode

The ESC firmware uses hardware generated motor PWM for smooth

throttle response and silent operation. Damped light does regenerative

breaking, causing very fast motor retardation, and it inherently also

● EFM8BB21F16G MCU, pipelined 8-bit C8051 core with 50 MHz maximum operating frequency.

● Dedicated high frequency driver, makes the start more smooth. ESC maximum speed is limited to 500k eRPM.

● Two layers tower structure between 4in1 ESC and FC using quick pin connection. Dual ways signal transmission makes the

flight more stable

● Exposed pads for Battery and Motor wires, fast welding without additional disassembly, makes the installation faster and more convenient.

● F3 flight controller, supports PPM, PWM and SBUS remote control / receiving mode.

● FC integrated OSD, also integrated 5V/1A, 12V/500mA for VTX, camera, buzzer, LED and other peripheral devices ;

provided several silicone cables for connectors on FC, and will give you an unprecedented experience for installation;

● Built-in current meter, OSD directly display the real-time current without any additional connection;

● BLHeli-S firmware. It designed for superior performance in multirotor, and uses hardware generated motor PWM for smooth

throttle response and silent operation.

● The code supports regular 1-2ms pulse width input, as well as Oneshot125 , Oneshot42 and Multishot .

● Supports Dshot150, Dshot300 and Dshot600.Dshot is digital signal, anti-interference ability is stronger, and do not need throttle calibration.
