NdFeB Deep Pot Magnet with Threaded Hole

Minimum Order
1
Place Of Origin
china
Packaging
N/A
Delivery
45 Days
Product Description

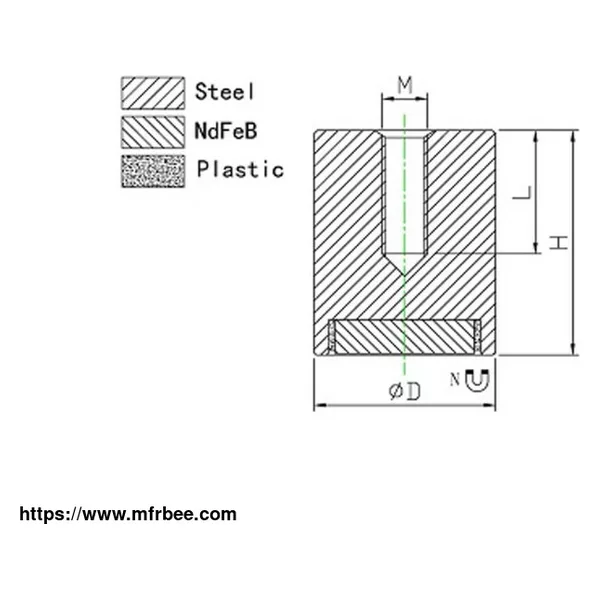

NdFeB Deep Pot Magnet has an internal threaded hole and can be fastened with objects with an external thread.

Item No. D H MXL Force Weight
mm mm mm Kg N Lbs g
M-RDNE6F 6 20 M3x5 0.6 6 1.3 4
M-RDNE8F 8 20 M3x5 1.2 12 2.6 7.5
M-RDNE10F 10 20 M4x7 2.4 24 5.3 11
M-RDNE13F 13 20 M4x7 6 60 13 20
M-RDNE16F 16 20 M4x7 9 90 20 30
M-RDNE20F 20 25 M6x9 13 135 30 58
M-RDNE25F 25 35 M6x9 19 190 42 131
M-RDNE32F 32 40 M8x12 34 340 76 243
M-RDNE40F 40 50 M8x12 71 700 157 480
M-RDNE50F 50 60 M10x12 102 1000 225 900
M-RDNE63F 63 65 M12x14 173 1700 382 1560
*H can be shortened or machined without being damaged.

If you want to know more about threaded magnetic base, please visit our website.

As one of dedicated magnetic assemblies manufacturers, we are equipped with specially designed semi-automatic, full-automatic production lines, and, on top of that, we have experienced professional staff. Our yearly output is tens of millions magnetic assemblies that meet the standard of the most critical customers. The diversity of our products in magnetic assembly qualifies us as your one-stop partner in this field.
