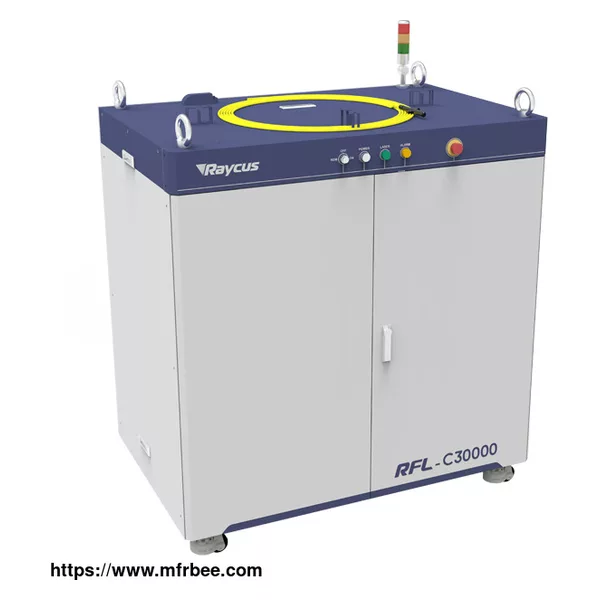

30000W Multi-module CW Fiber Laser

RFL-C30000XZ

The Multi-module CW Fiber Lasers developed by Raycus ranges from 3,000W to 30kW, with high electro-optical conversion efficiency, high light beam quality, high energy density, wide modulation frequency, high reliability, long service life, maintenance-free operation and advantages. The product can be widely applied in welding, precision cutting, melting and cladding, surface processing, 3Dprinting and other fields. Its optical output performance helps it better integrate with robots as a flexible manufacturing equipment to meet 3D processing requirement.

Customer service hotline: 027-81338818 to 8137

Online consultation +

Product specification

Characteristics of 30kw fiber laser

Technical characteristics

High Electro-optical Conversion EfficiencyCustomized Output Fiber LengthOutput cable:QPMaintenance-free OperationWide Modulation Frequency RangeSmall Size, Easy to Install

Optical Properties

Average output power: (W): 30000Central wavelength: (nm): 1080±5Maximum modulation frequency: (kHz): 2Output power stability: ±1.4%Red laser: Yes

Output characteristics

Output connector: QPoutput fiber core diameter (μm): 150BPP（mm.mrad)≤7polarization state: randomoutput fiber length (m): ≤20

Electronic control characteristics

Input power (V AC ): 323-436, Three Phase-four Wire Connect.@47-63HzControl mode: RS232, ADpower adjustment range (%): 10-100

Other characteristics

Dimensions (mm ): 1320*1220*1600(handle included)Weight (kg): <1200Cooling method: water coolingWorking temperature (℃ ): 10-40

Application Of 30000W Multi-Module CW Fiber Laser RFL-C30000XZ

CuttingWeldingCladding3D Printing/SinteringSurface Treatment

As a 1kw fiber laser factory, Wuhan Raycus Fiber Laser Technologies Co., Ltd. (hereinafter referred to as "Wuhan Raycus") is the first Chinese enterprise engaged in the research, development and scale production of high-power fiber lasers and core devices and the largest fiber laser R&D and production base with global influence in China.
