Label Feeder
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
About of Label Feeder Machine

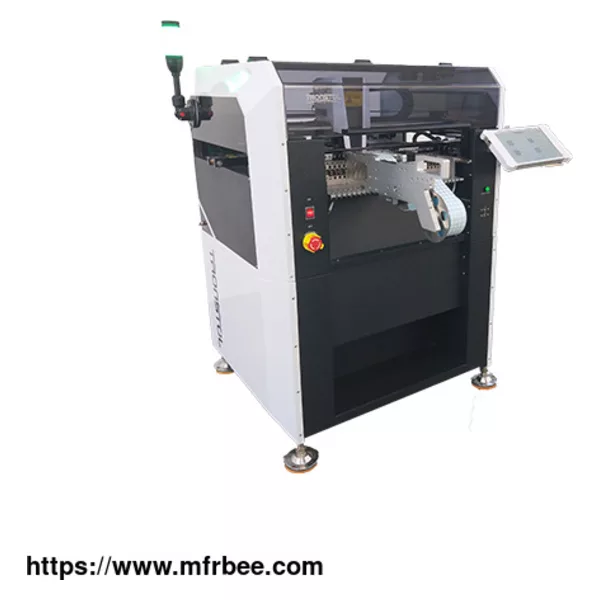

Tronstol SMT Label Feeder For Tronstol A1 Pick and Place Machine
The easiest and cheapest way of marking a product automatically is the application of a label with a label feeder. The feeder can be integrated in the automatic pick and place machine and the label
will be simply placed like a standard component – precisely and in line speed.
Features of Label Feeder
Cost-effective. Label and laser cells need a relatively high investment, and, one disadvantage of a laser cell is that not all products can be lasered. Manual application of labels is not possible
for high-volume productions and even for small companies. Manual placement is quite cost-intensive. Tronstol label feeder can save the manual placement cost and time. And it has a favorable price.
Easy to install and operate. It only takes one minute to installation to the pick and place machine. The feeder can be integrated with the pick and place machine and the label will be simply placed
like a standard component – precisely and inline speed.
High-precision.It can feed labels down to 3*3mm and its accuracy deviation is within 0.2mm.
Specification of Label Feeder
Product Parameter Dimension L485*W115*H100mm
Weight 4.75Kg
Applicable Materials Parameter Tape width ≤70mm(other sizes can be customized)
Tape thickness 0.05mm（optimum）
Tape material PET plastic film,bag release paper, etc.
Label type Roll materials such as label paper, protective film, and foam
Label size Between 3mm and tape width
Label height ≤10mm
Inner diameter of tray Standard 10CM(other sizes can be customized)
Tray load ≤3KG
Function Parameter Feeding method Tear off the label and pick up
Stripping method By tripping knife stripping (knife size can be customized)
Positioning Fiber optic sensor + amplifier
Feeding platform Teflon material or non-stick spray treatment
Install method Straight-through feeding
Fixed way Rear suspension of material tray + magnetic cover of discharge position
Control method 1 inch LCD screen + buttons
Communication method No communication automatic control feeding method (support 232 protocol communication expansion)
Drive method Stepper motor
Electric mechanism Type 42 feeding motor
Accuracy X direction ±0.2mm Y direction ±0.2mm
Transport speed 10 levels adjustable
Software control Based on ARM (STM32)
Operating Voltage 24V
Error prevention mechanism Press button to pause or automatically judge to deal with fiber failure without stopping failure
Single feeding quantity Single row and multiple columns, support more column expansion
PnP machine connection External power supply without PnP machine connection interface (can be customized as required)
Feeding position adjustment X direction magnetic cover sheet limit + Y direction software adjustment + Z direction mechanical adjustment
Now the price of wholesale smt line machine is affordable, if you have needs, please contact us.
As one of smt machine manufacturers, we will do our best to meet all the needs of customers.
