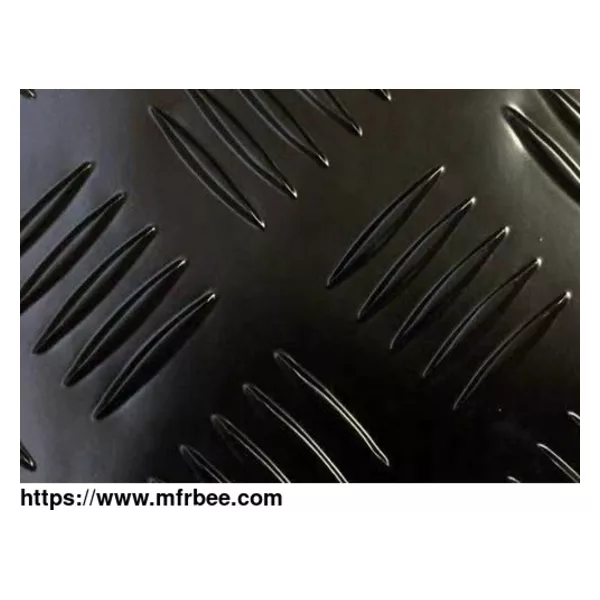

Aluminium Tread Plate refers to aluminum plate checkered
Patterns: Five bar, six bar, two bar, and one bar diamond patterns.
Aluminum Tread Plate Materials
Tread plates are manufactured from selected 1000, 3000 and 5000 series alloys, mainly 3003, 5052, 5251, and 6061, 6082 grade.
Aluminum plates are in general nonsparking, corrosion resistant, and nonmagnetic.
Tread plates in 3003 aluminum grade offer a shiner surface and popular material for decorative metal working. 6061 aluminum is less corrosion resistant comparing to 3003 grade, but it is stronger
and suitable for stair treads. 6082 aluminum alloy plate is also strong, ideal for flooring uses.
We produce aluminum tread plate with standard dimensions and customised tread plates according to the customer’s dimensions. Following listed quality standard for references:
EN 573-3 Aluminium and aluminium alloys – Chemical composition and form of wrought products
EN 1386 Aluminium and aluminium alloys – Sheets with embossed patterns – Specifications
EN 15088 Aluminium and aluminium alloys – Structural products for construction work
Aluminium Tread Plate - Aluminum 6082 Floor Plate
Material: Aluminium 6082 Treadplate (PLATE, FLOOR, METAL; TREADPLATE; ALUMINIUM ALLOY; ROLLED)
Specification: DEF STAN 02-740 – Issue 2
Size: 910.00MM WIDTH; 5.600MM THICKNESS; 3.200MM BASE THICKNESS; 3600.00MM LENGTH; 10.28KG/SQ METRE WEIGHT APPROX
Size: 910.00MM WIDTH; 8.800MM THICKNESS; 6.400MM BASE THICKNESS; 3600.00MM LENGTH; 18.95KG/SQ METRE WEIGHT APPROX
Aluminium Alloy EN AW-6082/T6 (EN AW-Al Si1 Mg Mn) Tread Plate
Aluminum Tread Plates specifications
The chemical composition of the material is to comply with the requirements in BS EN 573-3 for material designation EN AW-6082 (EN AW-Al Si1 Mg Mn).
Plates are to be supplied in the T6 condition (solution heat-treated and then artificially aged) to BS EN 515.
The aluminium plate china is one of the most popular alloys. And there are a lot of various thicknesses and grades in the warehouse. such as 5052 6061 6082 7075 5A06 2A12 2024 etc from the china alum plate suppliers-China Aluminium Industry Supply Chain (Tianjin) Co.,Ltd. Plate ...
China Alum Checker Plate This alloy aluminum in the main alloy elements as magnesium and silicon, with middle strength, good corrosion resistance, weldability, oxidation effect is good. Widely applied to the requirements of a certain strength and antibiotics resistance high ...
7075 Aluminium Plate 7075 is Al-Zn-Mg-Cu superhard aluminum alloy, which has been used in aircraft industry since the end of 1940s and is still widely used in aviation industry. It is characterized by good plasticity after solution treatment, especially good strengthening ...
