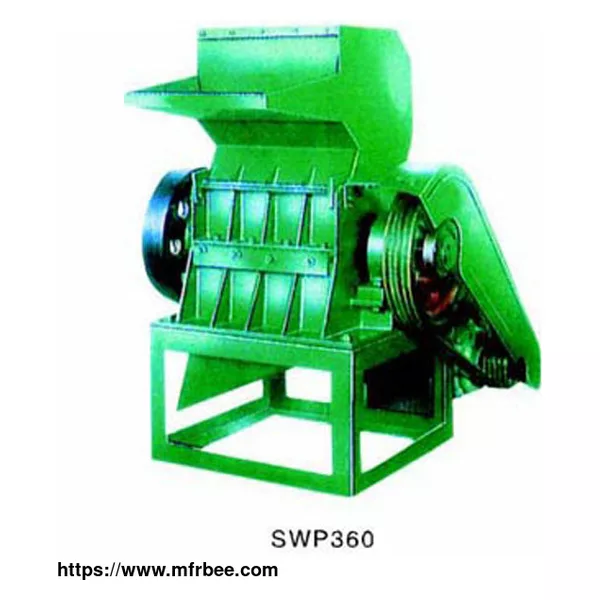

SWP Series Crusher
Product Quick Detail
- Packaging
- N/A
- Delivery
- 45 Days
Specifications
SWP series crushers are mainly used to recycle every kind of waste plastic; model 160 and 320 are used to break a plastic film, knitting bag, thin and long fibre and threadlike thing; model 880 and
500Q are used to break the large plastic board and hollow vessel; model 400 and 630 are used to break a plastic window and door profile; model 500Z is used to break the big block and thick boards.
Uses and features:
1. The steel case, cast steel knife carriage and the alloy knife are able to avoid caching ;
2. Stage cutting knife increases the crack capacity and efficiency;
3. It is convenient to assembled and disassemble movable sieve and is easy to clean and colour-change;
4. The feeding hopper with protecting switch is safe to the operator;
5. Special made super powerful cracker is especially suitable for cracking super thick stuff.
The Parameter of SWP Series Crusher
model Rotary diameter of rotary knife Rotating blade handle Fixed blade Sieve plate aperture Feed diameter Fragmentation degree Crushing rate Matching power of crushing rate External dimension
Overall quality
SW100 100 2 2 6 160*100 3-5 40 2.2 560*370*925 120
SW160A 160 3 2 8 254*200 3-6 100 3.7 90*450*1300 3005
SW250 250 6 2 10 300*250 3-10 250 5.5 1170*800*1570 410
SW260 260 3 2 12 370*150 3-12 300 5.5 900*7300*925 180
SW320 320 6 2 10 510*370 3-10 300 11 1170*850*1632 1063
SW340 340 3 2 10 520*340 3-12 300 11 1400*1032*2540 1450
SW360A 360 3 2 12 520*250 3-12 400kg/h 11 1350*1040*1600 750kg
SW4360B 360 3 2 12 520*250 3-10 400 11 1020*1070*1438 760
SW400A 400 5 2 10 375*320 3-10 450 11 2200*910*1860 1450
SW500Z 500 3 2 10 720*750 3-10 500 37 1900*1550*2800 4200
SW500Q 500 3 2 10 630*500 3-10 500 18.5 1600*1400*2600 2500
SW630 630 3 2 10 500*420 3-10 800 30 1710*1400*2840 3500
SW800 800 10 4 10 1000*776 3-10 1000 55 1900*1500*3500 550
SW400 400 6 4 10 500*400 3-10 550 15 3700*1950*2400 4115
SW2000 2000 1 2 3 800*800 2500 55 4220*2700*5500 7350
Plastic Crusher Machine for Sale is so many in China,how is the plastic crusher machine work?
The blade will be high speed rotary by the motor to achieve crush. The moving blade high speed rotary and the static blade form certain distance, then the large plastic will be cut into smaller
pellets. After screen selection, the small pellets will be outputted. Those are all used for plastic machine's preparation. So we should prepare the crusher which used to cut or crush plastic. If
we use pellet, it's no need to prepare this machine. It's only used for crushing.
