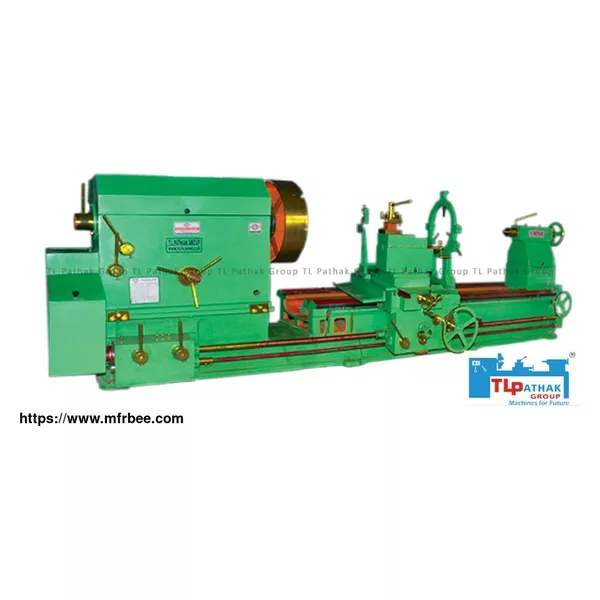

Roll Turning Lathe Machine

Minimum Order
1
8796
1
Packaging
1
Delivery
15 Days
Length of Bed (With Head Stock) : 12 to 16
Width of Bed : 26" to 28
Height of Center : 24 to 26
Swing over Bed dia : 47 to 51
Swing in Gap dia. : 72 to 76
Width of gap intent of face plate : 14 to 16
Swing over saddle center 37 to 41
Admit between center : 70 to 213
Spindle hollow 41/8"
No. of Spindle speed : 6
Size of Morse taper : MTS
Lead screw pitch : 2PTI
Power required in H.P. : 7.5 to 20
R.P.M motor approx. : 960
Approx. weight in Kgs. 5000 to 8000
  • Country: India
  • Business Type: Industrial Machines Manufacturer
  • Market:Asia,Africa,Europe
  • Founded Year:1960
  • Address:116, Grand Trunk Road, Salkia, Howrah-711106, Kolkata, India
  • Contact:Hitesh Pathak
