Cable trays are becoming more and more widely used in modern buildings. Traditional manual production can no longer meet the demand, and the industry urgently needs the input of automated
production lines to increase production/reduction of artificially improved product quality and reduce labor intensity.
The new cable tray automatic roll forming machine developed and produced by BOSJ is non-standard customized equipment. According to the different requirements put forward by customers, the process
design and customized production meet the requirements of speed, intelligence and equipment floor space required by customers. Tailored to the actual situation of each customer with the most
affordable cable tray punching machine price.
Cable Tray C Purlin Roll Forming Machine
Cable Tray C Purlin Roll Forming MachineFind out more
Cable Tray Cover C Purlin Roll Forming Machine
Cable Tray Cover C Purlin Roll Forming MachineFind out more

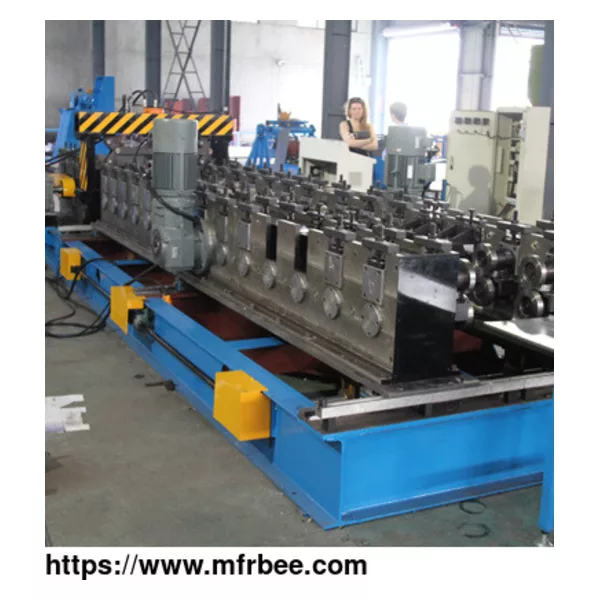

Cable Tray Machine Overview:
The cable tray punching machine production line can produce cable trays. Different specifications are completed by replacing the die. The roll forming machine adopts a combination of adjustable and
one set of rolls to complete all specifications of the bridge products. The specification changes are completed by adjusting the forming machine opening and rolling.
The production line is divided into automatic and manual operation modes, which can realize linkage and segmentation operation.
The complete set of equipment consists of uncoiler, leveler, servo feeder, punch, die, guide frame, forming machine, cut-off, receiving table and electrical control.
The cable tray automatic roll forming machine can produce 0-10m per minute, the specifications can be adjusted freely, the operation is simple and easy to learn, the production efficiency is
greatly improved, and the automation degree of the enterprise is improved.
Cable tray equipment has several advantages:
The equipment control is PLC control, and multiple safety protection is set during normal production.
The bed is welded with steel plates. It is also tempered to eliminate internal stress and avoid deformation of the fuselage.
The forming frame is cast iron structure and tempered. High strength and long service life.
The material of the roll shaft is 40Cr, and the hardness is HB280 after quenching and tempering treatment.
The material of the molding die is GCr15, quenching treatment, hardness: HRC 56-62 °C.
The transmission structure is gearbox transmission. Each molding frame has a gearbox that guarantees time-out, high-intensity operation and long service life.
As one of the leading roll forming machine manufacturers in china,we guarantee first-rate after-sale service and product quality.
