Rare Earth SmCo rod magnets
Rare earth samarium cobalt arc magnet(shorted as SmCo magnet)is a kind of rare earth magnet for high temperature resistance. It is a kind of functional magnetic material made of samarium, cobalt
and other metal rare earth materials by mixing, melting, grinding, pressing and sintering. SmCo magnets are classified as Sm1Co5 and Sm2Co17 according the composition ratios of samarium and cobalt.

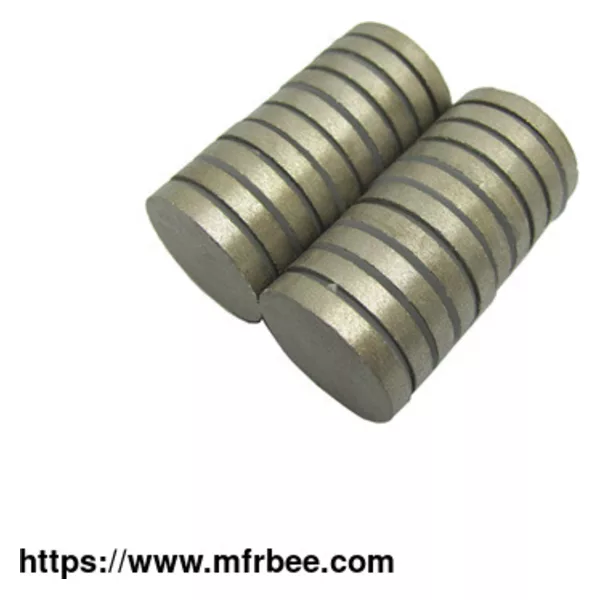

SmCo Disc Magnets
Samarium cobalt(SmCo) disc magnets are made of an alloy of samarium and cobalt. They have strong magnetic strength like as neodymium disc magnets.The reason why SmCo disc magnets are widely used is
th...
Large SmCo Block Magnets
Samarium cobalt(SmCo) block magnets (also known as rare earth block magnets)are made of an alloy of samarium and cobalt,which also have strong magnetic force like as neodymium block magnets.
Because of their ...
SmCo Bar Magnets
The long rare earth smco bar magnets are called as SmCo bar magnets.Rare Earth samarium cobalt (SmCo) block bar magnets can be used in high temperature environment or applications with
demagnetizati...
SmCo Cylinder(rod) Magnets
The cylindrical SmCo magnet with a thickness that’s equal to or larger than their diameter known as samarium cobalt (SmCo) cylinder or rod magnets.Samarium cobalt(SmCo) cylinder magnets are made of
a...
SmCo Ring Magnets
The ring shape magnets on the page are made of rare earth Samarium-Cobalt(SmCo) material,which shorted as rare earth Samarium-Cobalt(SmCo) ring magnets. SmCo ring magnets are important ...
SmCo Rectangular Magnets
China SmCo rectangular magnet offer excellent rust resistance to water because of little free iron being present in its structure. Due to its brittle nature,care should be taken when assembling...
SmCo Arc Magnets
The rare earth arc magnets on this page are made from the rare earth magnetic material samarium and cobalt. Samarium cobalt arc magnet is the second strong magnetic material behind neodymium,and
widel...
SmCo Countersunk Ring Magnet
Rare earth SmCo countersunk ring magnets have very high coercivity, which means they are not easy to demagnetize. SmCo countersunk ring magnets are known by their ability to work at temperatures up
to...
Square SmCo Magnets
Rare earth samarium cobalt (SmCo) magnets are often used in applications with high temperature ,which need high magnetic performance and where magnetic stability over a wide range of ...
Application of rare earth samarium-cobalt(SmCo )magnets
Due to strong corrosion resistance and oxidation resistance, samarium-cobalt magnet(SmCo magnets) are widely used in aerospace, national defense and military industry, microwave devices,
communication, medical equipment, instruments, meters, various magnetic transmission devices, sensors, magnetic processors, motors, magnetic cranes, etc.
Advantages of samarium-cobalt(SmCo)rare earth magnets
SmCo magnets have high magnetic energy product,the maximum magnetic energy product of samarium-cobalt(SmCo) magnets ranges from 16MGOe to 32MGOe, and its theoretical limit is 34MGOe. SmCo magnets
also known as strong rare earth magnets.
SmCo magnets have extremely low temperature coefficient. The maximum working temperature can reach 350 ℃ and the negative temperature is unlimited. When the working temperature is above 180 ℃, all
of the maximum magnetic energy product (BHmax), coercivity, temperature stability and chemical stability are better than those of neodymium-iron-boron.
SmCo magnets have strong corrosion resistance and oxidation resistance,surface treatment not needed for SmCo.
Disadvantages of rare earth samarium cobalt(SmCo) magnets
Samarium-cobalt magnets are easy to peel. Goggles must be worn when handling them.
SmCo magnets are made by a process called sintering, and sintering of all materials. cracks are very likely to occur inside
The machining performance of SmCo magnet is poor,small corners are easy to be produced because of slight collision during the process of production,packing, and transportation.
Magnetic properties of samarium-cobalt magnets(SmCo magnets)
Friendly reminding for ordering rare earth SmCo magnets:
SmCo(1:5) magnets have better mechanical and physical properties than SmCo(2:17) magnets, which is slightly easier to process
If SmCo magnets are used in acid-base environment and another bad environment, electroplating treatment can be adopted on the them, Nickel-coated SmCo magnets, Zinc-coated SmCo magnets,
Epoxy-coated SmCo magnets etc can be supplied
If you need un-magnetized SmCo magnets, you should be familiar with the magnetizing energy of your magnetizing equipment, so as to choose the correct grades of SmCo magnets which can be completely
full magnetized.
Now the price of smco magnets for sale is affordable, if you have needs, please contact us.
As one of industrial magnets suppliers, we will do our best to meet all the needs of customers.
