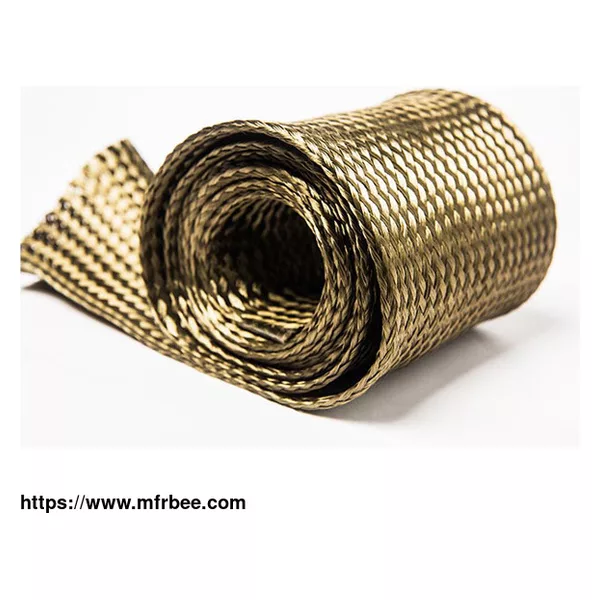

asalt Sleeve

Packaging: N/A

Delivery: N/A

QIAN-ZE basalt sleeve is specialized in protecting wires, cables, hoses, oil lines from extreme heat conditions and electric insulation performance in a flexible way, which are widely used in iron metallurgy industry, industrial furnaces, aerospace, nuclear power, etc. The braided basalt fiber tape products are the ultimate options for extreme heat conditions which is also easy to install and cut and will provide years of abrasion protection.

Good thermal insulation and fire resistant performance make QIAN-ZE basalt sleeve withstand continuous exposure to 760℃（1400℉), providing a 500℃（932℉) increase in temperature protection over fiberglass products.

Quick Reference of Basalt Sleeve

Materials Basalt Fiber

Recommended Operating Temperature

Continuous Exposure: 760℃（1400℉)

Size Range ID: 10mm-100mm(3/8"-4")(Larger sizes can be customized)

Color Nature

Typical Industries Transportation (Aerospace, Auto, Locomotive, Heavy Equipment)

Metals, Iron & Steel

Hose Fabrication

Oil & Gas

Application Hose and Cable Heat Protection

Water/Oil Proof

Abrasion Protection

Electric Insulation

Specification of Basalt Sleeve

Basalt Sleeve

XM Part No. Inner Diameter Wall Thickness Roll Length

mm inch mm inch m/r

XM-BP-10 10 3/8 0.6 0.024 100

XM-BP-12 12 1/2 0.6 0.024 100

XM-BP-15 15 5/8 0.6 0.024 100

XM-BP-20 20 3/4 0.7 0.028 100

XM-BP-25 25 1 0.7 0.028 50

XM-BP-30 30 1-1/8 0.8 0.031 50

XM-BP-35 35 1-3/8 0.8 0.031 50

XM-BP-40 40 1-5/8 0.8 0.031 50

XM-BP-45 45 1-3/4 0.9 0.035 25

XM-BP-50 50 2 0.9 0.035 25

XM-BP-55 55 2-1/8 0.9 0.035 25

XM-BP-60 60 2-3/8 1.0 0.039 25

XM-BP-65 65 2-1/2 1.0 0.039 25

XM-BP-70 70 2-3/4 1.1 0.043 25

XM-BP-75 75 3 1.1 0.043 25

XM-BP-80 80 3-1/4 1.1 0.043 25

XM-BP-85 85 3-3/8 1.2 0.047 25

XM-BP-90 90 3-1/2 1.2 0.047 25

XM-BP-100 100 4 1.2 0.047 25

Country: China (Mainland)
Business Type:
Market:
Founded Year:2011
Address:No.31, zhenning Road,Helik Park,Ningguo city,Anhui provice,China
Contact:QIAN ZE
