SMD3528 60LED/M Led Strip Light
Product Quick Detail
- FOB Price
- USD $1.20 / Piece
- Place Of Origin
- China
- Minimum Order
- 8000
- Packaging
- carton
- Delivery
- 10-15 days
Specifications

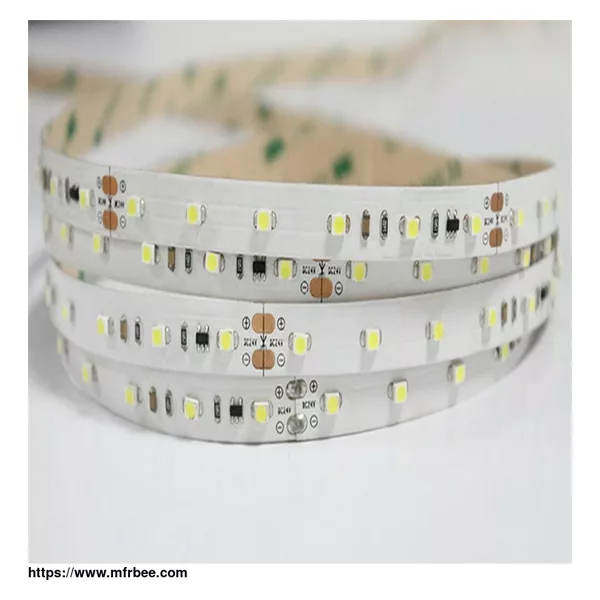

SMD 3528 Constant Current LED Strip Light 60LED/M
Constant Current SMD3528 Led Strip Lights manufacturer
Hanron Lighting Co. Limited's led smd 3528 constant current LED Flexible Strip Lighting, 60LED/Meter, both waterproof and non-waterproof, is to satisfy customers seeking a high brightness of the
lighting and brilliant color effects. By using build-in constant current IC, they obtain longer lifespan, longer in connection and uniform brightness. Smd3528 led are ideal light source for home
decoration, hotel, KTV, cove ect.
Features of SMD 3528 Constant Current LED Strip Light 60LED/M:
1. TOP SMD3528 chip, high brightness, wide beam angle, low decay.
2. With build-in constant current IC, longer lifespan
3. Cuttable for each group, convenient for using
4. Longer in connection,uniform brightness
5. Easy to install for any bending
6. DC24V,safe and fit for universal use
7. Certification: CE & RoHS
Application of SMD 3528 Constant Current LED Strip Light 60LED/M:
1. Cove lighting
2. Architectural lights for canopy, corridor, window, archway
3. Backlight or edge lighting for signage
4. DIY lights for home use
5. Path and contour marking
6. Decorative lights for holiday, event, show, exhibition
7. Special light effect for art gallery and glass-made items
Parameter
Item NO. LED
Type LED QTY
(PCS) Current
(mA) Voltage
(V) Power
(W/M) Color Wave Length/C. T. Luminous Flux/M Protect Level
HR10-A12ANW60P SMD3528 60 20 DC22-DC26 4.8 W 5500-6500K 390LM±10% IP20/
IP65/
IP67/
IP68
HR10-A12AWW60P SMD3528 60 20 DC22-DC26 4.8 WW 2800-3200K 390LM±10%
HR10-A12ACW60P SMD3528 60 20 DC22-DC26 4.8 CW 9000-12000K 390LM±10%
HR10-A12AR60P SMD3528 60 20 DC22-DC26 4.8 RED 620-630nm 120LM±10%
HR10-A12AY60P SMD3528 60 20 DC22-DC26 4.8 YELLOW 585-595nm 120LM±10%
HR10-A12AB60P SMD3528 60 20 DC22-DC26 4.8 BLUE 465-475nm 72LM±10%
HR10-A12AG60P SMD3528 60 20 DC22-DC26 4.8 GREEN 520-530nm 210LM±10%
Performance Curve of SMD 3528 Constant Current LED Strip Light 60LED/M
1. Wide range of working temperature(-30℃~40℃)
The current of LED keep stable from -30 ~40 .Uniform brightness , good performance.Better protect the LED from damage( as showm in black line)
2. Long connection(Max:10M)
Single end input,uniform brightness,good for connection( as shown in red line)
3. Wide voltage(22V~26V)
Voltage keeps stable within range,constant current good for LED ( as shown in green line)
Dimension of SMD 3528 Constant Current LED Strip Light 60LED/M:
Connect Drawing:
Installation of SMD 3528 Constant Current LED Strip Light 60LED/M
1. The black of strip stick with 3M tape. Only need to rive the face paper on 3M tape when use.
2. Stick the strip anywhere 3M tape easy to fix.
3. When install strips, it can be cut at the marks of scissors according to length.
4. Fix the strips with screw of clip lock.
A. Installation with 3M tape
B. Installation with mounting Clip
Packaging:
1.Diagram
2. Notes from Constant Current SMD 3528 Led Strip Lights supplier in China-Hanron
*Reel each strip(5M) by one and put in AL foil bag;
*Put 15 reels into one inner box, total 75M strip;
*Put 2 inner boxes into one carton, total 150M strip.
If you want to know the details of china strip led lights or more, contact us.
