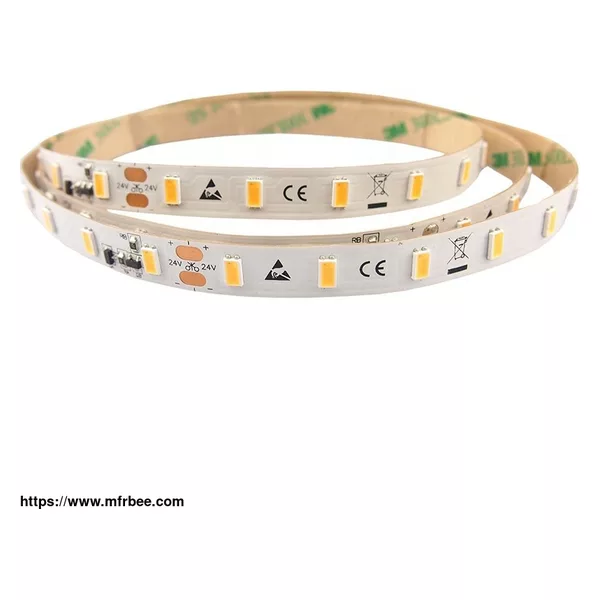

SMD 5630 Led Strip Light 60LED/M

SMD led 5630 Constant Current LED Strip Light 60LED/M

Constant Current SMD led 5630 strip Lighting manufacturer

Hanron Lighting Co. Limited's SMD 5630 constant current LED Flexible Strip Lighting, 60LED/Meter, both waterproof and non-waterproof, is to satisfy customers seeking a high brightness of the lighting and brilliant color effects. By using build-in constant current IC, they obtain longer lifespan, longer in connection and uniform brightness. They are ideal light source for home decoration, hotel, KTV, cove ect.

Features of SMD 5630 led strip lights 60LED/M:

1. TOP SMD5630 chip, high brightness, wide beam angle, low decay.

2. With build-in constant current IC, longer lifespan

3. Cuttable for each group, convenient for using

4. Longer in connection,uniform brightness

5. Easy to install for any bending

6. DC24V,safe and fit for universal use

7. Certification: CE & RoHS

Application of SMD 5630 led strip 60LED/M:

1. Cove lighting

2. Architectural lights for canopy, corridor, window, archway

3. Backlight or edge lighting for signage

4. DIY lights for home use

5. Path and contour marking

6. Decorative lights for holiday, event, show, exhibition

7. Special light effect for art gallery and glass-made items

Parameter of SMD 5630 Constant Current LED Strip Lighting 60LED/M

Item NO. LED

Type LED QTY

(PCS) Current

(mA) Voltage

(V) Power

(W/M) Color CCT

(K) Luminous Flux/M Protect Level

HR10-D12ANW60P SMD5630 60 60 DC22-DC26 14.4 W 5500-6500K 1400LM±10% IP20/

IP65/

IP67/

IP68

HR10-D12AWW60P SMD5630 60 60 DC22-DC26 14.4 WW 2800-3200K 1400LM±10%

HR10-D12ACW60P SMD5630 60 60 DC22-DC26 14.4 CW 9000-12000K 1400LM±10%

Performance Curve of SMD 5630 Constant Current LED Strip Lighting 60LED/M

1. Wide range of working temperature(-30℃~40℃)

The current of LED keep stable from -30 ~40 .Uniform brightness , good performance.Better protect the LED from damage( as showm in black line)

2. Long connection(Max:10M)

Single end input,uniform brightness,good for connection( as shown in red line)

3. Wide voltage(22V~26V)

Voltage keeps stable within range,constant current good for LED ( as shown in green line)

Installation of SMD 5630 Constant Current LED Strip Lighting 60LED/M

1. The black of strip stick with 3M tape. Only need to rive the face paper on 3M tape when use.

2. Stick the strip anywhere 3M tape easy to fix.

3. When install strips, it can be cut at the marks of scissors according to length.

4. Fix the strips with screw of clip lock.

Packaging:

1.Diagram

2. Notes from of SMD 5630 Constant Current LED Strip Lighting supplier in China -Hanron

*Reel each strip(5M) by one and put in AL foil bag;

*Put 15 reels into one inner box, total 75M strip;

*Put 2 inner boxes into one carton, total 150M strip.

If you want to know the details of china waterproof led strip or buy our product, contact us.
