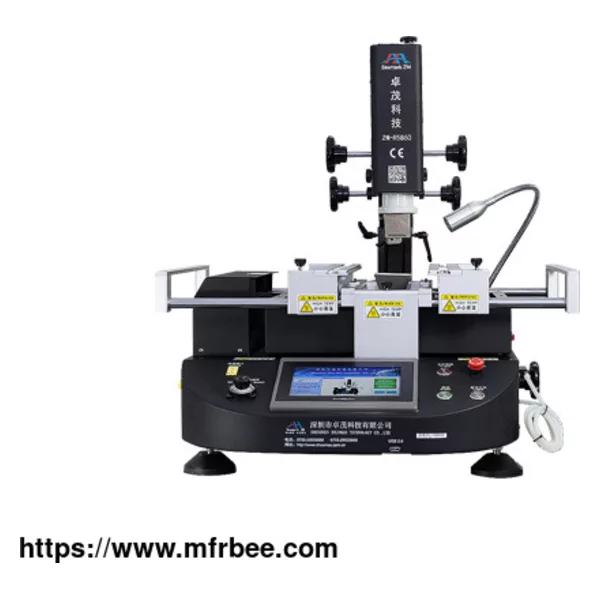

ZM-R5860 Hot Air BGA Rework Station
Product Quick Detail
- Place Of Origin
- Bao'an, Shenzhen
- Minimum Order
- 500
- Packaging
- Wooden Box
- Delivery
- 15days
Specifications
Principle And Operation Mode Of Seamark ZM R5860 BGA Machine
Zhuomao ZM R5860 Hot Air BGA Rework Station is a kind of rework station provided by Zhuomao, which has three temperature zone Independently control, convection hot air heating, lower temperature
zone height-adjustable, high-precision autonomous control system, high-precision K-type thermocouple with accuracy up to ± 3 ℃, dynamic APR multi-loop closed-loop control selective reflow process.
Imported high power constant current integrated cooling fan.
As one of the most reputable BGA Rework Station suppliers, Seamark ZM provides the best BGA Rework Station Machine with good quality. If you want to know seamark ZM R5860 price, please contact us
now!
Functions of Zhuomao ZM R5860 Smart BGA Rework Equipment
00 Temperature Curve Setting
High-definition touch screen operation, real-time display and, editing of temperature curves, each group of temperature curves can be set to 8 segments, 100 groups of temperature curves can be
stored, with temperature self-organizing function.
01 Laser Red-dot Positioning Guide
Laser indicator for PCB and component positioning.
02 Vacuum Adsorption
The external vacuum suction pen is convenient for taking BGA.
Specification Of Seamark ZM-R5860 Hot Air Zhuomao BGA Rework Station
Power Supply AC220V±10% 50/60HZ
Power 5.0KW(Max)，Top heater(0.8KW) Bottom heater (1.2KW)，IR Preheater (2.7KW),Other(0.3KW)
PCB Size 410*370mm(Max); 10*10mm(Min)
BGA Chip Size 40*40mm(Max); 10*10mm(Min)
IR Heater Size 375*285mm
Temperature Sensor 1 pcs
Operation Method 7" HD touch screen
Control System Autonomous heating control system V1（software copyright）
Alignment System Laser dot
Vacuum Adsorption Manual
Temperature Control K-type thermocouple closed-loop control with accuracy up to ±3℃
Positioning V-groove with universal fixture
Dimensions L635*W620*H655mm
Weight 43.5KG
- Country: China (Mainland)
- Business Type:
- Market:
- Founded Year:
- Address:F2, Building 10, Huaide Cuihai Industrial Zone, Bao'an, Shenzhen
- Contact:Jackie Tian
