ZM-R7220A Infrared Soldering Station
Product Quick Detail
- Place Of Origin
- Bao'an, Shenzhen
- Minimum Order
- 500
- Packaging
- Wooden Box
- Delivery
- 15days
Specifications

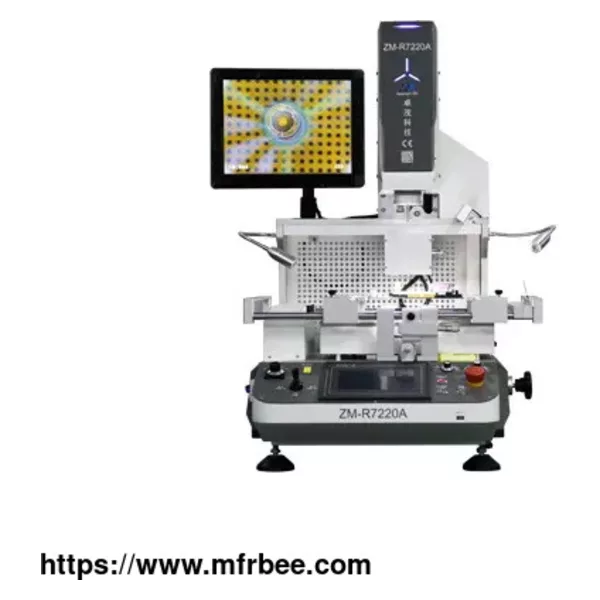

ZM R7220A infrared SMD rework station is an intelligent infrared soldering station with real-time temperature monitoring, optical alignment system, rapid heating, and cooling. As an iir soldering
station manufacturer, Zhuomao promises to provide high-quality ir BGA machines. Significantly, Zhuomao's infrared soldering station price is reasonable. Plus, Seamark ZM-R7220A ir rework station
is also called zm r6200 bga machine in the past.
Functions of R7220A Infrared Soldering Station (ZM R6200)
00 Real-time Temperature Monitoring
Real-time temperature display, with automatic curve analysis function.
01 Optical Alignment System
High-definition CCD (2m pixels) digital imaging, automatic optical zoom system, manual control and laser red-dot alignment.
02 Rapid heating and cooling
The IR preheating zone is heated by a medium wave ceramic infrared heating plate, a multi-functional movable PCB fixing bracket, and a BGA bottom support frame. Laminar integrated cooling fan.
As one of the top infrared soldering station suppliers in China, Seamark ZM is famous for its rich technical force, complete detection means, reliable product quality, and full service. If you want
to know the BGA repair machine and to get a perfect infrared soldering station price for your factory, please contact Seamark ZM first.
Specification Of R7220A IR BGA Rework Station (ZM R6200C)
Power Supply AC220V±10% 50/60HZ
Power 5.65KW(Max)，Top heater(1.45KW) Bottom heater (1.2KW)，IR Preheater (2.7KW),Other(0.3KW)
PCB Size 412*370mm(Max);6*6mm(Min)
BGA Chip Size 60*60mm(Max);2*2mm(Min)
IR Heater Size 285*375mm
Temperature Sensor 1 pcs
Operation Method 7" HD touch screen
Control System Autonomous heating control system V2（software copyright）
Display System 15" SD industrial display (720P front screen)
Alignment System 2 Million Pixel SD digital imaging system, automatic optical zoom with laser red-dot indicator
Vacuum Adsorption Automatic
Alignment Accuracy ±0.02mm
Temperature Control K-type thermocouple closed-loop control with accuracy up to ±3℃
Feeding Device No
Positioning V-groove with universal fixture
Dimensions L685*W633*H850mm
Weight 76KG
Difference Between A Hot Air Rework Station And An IR BGA Rework Station
The main difference between a hot air rework station and an IR BGA Rework Station is the way they heat the board. A hot air rework station uses heated air to transfer heat from the tool-to-board
interface and into the solder balls, whereas an IR BGA Rework Station uses infrared light to heat up just enough of each ball so that it melts.
The next important difference is how they control temperature: Hot Air rework stations use PID temperature control, but IR BGA Rework Stations use proportional pressure modulation (PPM). PPM is
more precise than PID because it can monitor changes in pressure within milliseconds. This means that when applying flux to a board or when reflowing solder balls on a board, you can rapidly
respond by adjusting your PPM settings as necessary. With PID, this would take about 20 seconds per change due to slow response times in most systems.
Another key difference lies in airflow control systems; hot air has no need for specialized airflow since there's no need for cooling during reflow since all of that happens outside of the oven
chamber using an external fan which blows across all areas equally regardless if they are close or far away from each other.
We also have types of china inline x ray machine for sale, if you have needs, please contact us.
If you want to know more types of bga x ray machine, please visit our website.
