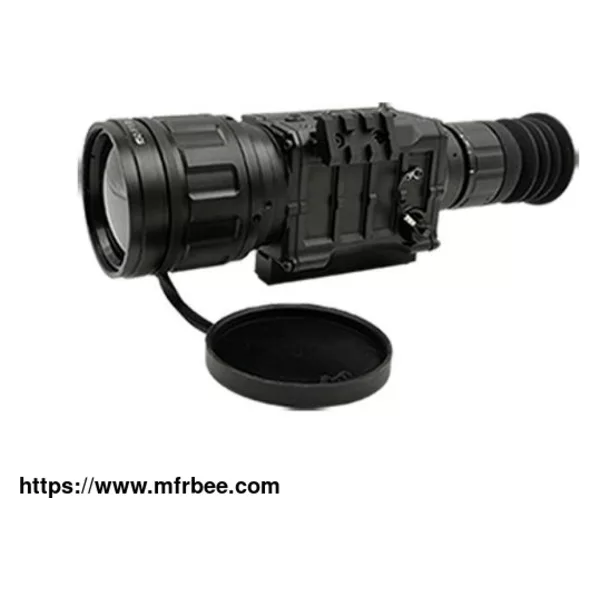

Eagle30 Thermal Imaging Sight

Overview of Eagle30 clear night vision camera

Eagle30 is a thermal weapon sight, and it is widely used for law enforcement. It is capable of detecting heat of targets against cooler background during day and night. Even in severe conditions such as total darkness, haze, dust, sleet, forest, grass, disguise and so on, it can work smoothly.

Features of Eagle30 Thermal Night Camera

Pixel pitch 17μm, NETD≤70mK

50Hz instant imaging, 3s start-up, time-saving

Multiple lenses for option: 35mm, 50mm and 75mm

AMOLED SVGA 800×600

Polarity control(black hot/white hot)

Technical Specifications of Eagle30 Portable Night Vision Camera

Item Eagle 30

Detector Data

Type Uncooled FPA

Material aSi

IR resolution 384×288

Pixel pitch 17μm

Spectral range 8～14μm

NETD/Sensitivity ≤70mK

Lens Data

FOV/Focal distance 10.6°×8.0°/35mm 7.5°×5.5°/50mm 5.0°×3.75°/75mm

Recognition distance(Vehicle) 950m 1200m 1600m

Recognition distance(Human) 320m 420m 600m

F F 1.0

Eye relief 50mm

Diopter -5~+5

Image Performance

Display 800×600 OLED

Frequency 50Hz

Zoom 2X

Polarity/LUT mode Black hot/White hot

Reticle color White/Black/Red/Green(optional)

Reticle type 5 reticle types(customizable)

Startup time 3s

Contrast/Brightness Auto/Manual

Interfaces

Format Waterproof aviation plug

Picatinny rail MIL-STD 1913

Video output PAL

Power System

Battery type 2pcs CR123A battery

Operating time ≥4hour

Environment Parameters

Operating temperature range -30℃～+60℃

Storage temperature range -40℃～+70℃

Encapsulation IP67

Vibration MIL-STD-810F

Shock MIL-STD-810F

Physical Data

Size(without eyepiece) 156mm×61mm×66mm(with 35mm lens)

186mm×70mm×70mm(with 50mm lens)

210mm×86mm×86mm(with 75mm lens)

Weight(with battery) 560g(with 35mm lens)

720g(with 50mm lens)

880g(with 75mm lens)

Packing

Standard Thermal imaging sight, 4pcs CR123A batteries, Picatinny rail, Picatinny quick release interface, Composite output cable, Warranty card, User manual, Certificate, Transport case

Option 5V power adapter

Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us.

Applications of Eagle30 Thermal Night Camera

Law enforcement

Targeting systems

Defense systems
