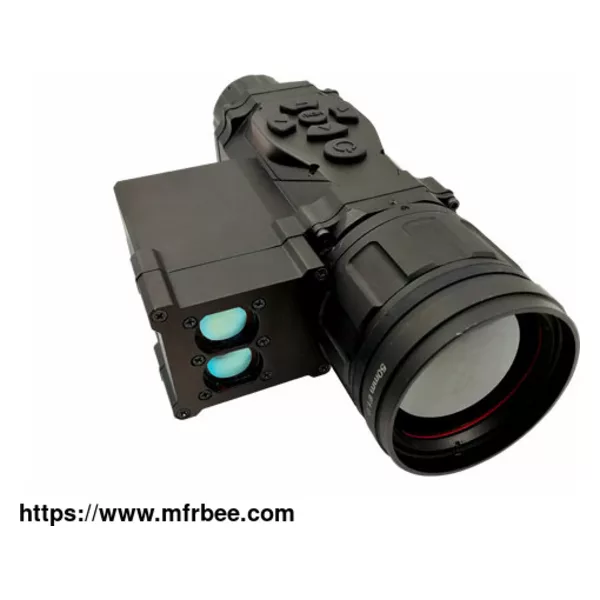

Eagle30CC Thermal Imaging Sight

Overview of Eagle30CC night vision handheld camera

Eagle30CC can be used not only as a gun sight, but also as a one handed telescope. High performance and high precision laser rangefinder, AMOLED1024X768 high resolution eyepiece and PIP function of the screen help you find more details of your target. And also don’t forget the features of quick start, ready to use and flexible.

Features of of Eagle30CC night scope camera

Integrated high performance 600 meter effective laser rangefinder

In different scenes, a variety of aiming reticles are optional

Built-in long-term lithium battery

Quick Disassembly of Picatinny Rails

Technical Specifications of Eagle30CC Thermal Imaging Sight

Item Eagle30CC

Detector Data

Type Uncooled FPA

Material aSi

IR resolution 384×288

Pixel pitch 17μm

Spectral range 8~14μm

NETD/Sensitivity ≤70mK

Lens Data

FOV 10.6°×8.0° 7.5°×5.5°

Focal distance 35mm 50mm

Recognition distance(Vehicle) 950m 1200m

Recognition distance(Human) 320m 420m

F.no 1

Distance of exit pupil 48mm

Diopter -5~+5

Image Performance

Display 1024×768 OLED

Frequency 50Hz

Amplification 2×, 4×

Polarity/LUT mode Black hot/White hot/Red hot

PIP Yes

Reticle color White/Black with reverse

Reticle type 5 reticle types(customizable)

Startup time 3s

Contrast/Brightness Auto/Manual

Laser Ranging

Wavelength 905nm

Ranging distance 600m

Ranging accuracy ±2m

Interface

Format Waterproof aviation plug(with power,video,RS232)

Video output PAL

Picatinny rail MIL-STD 1913 Picatinny Rail

Power System

Battery type Non-removable, rechargeable lithium battery

Operating time ＞5h continuous

Environment Parameters

Operating temperature range -20℃~+50℃（-30℃～+60℃ ,optional）

Storage temperature range -40℃~+70℃

Encapsulation IP66

Shock&vibration MIL-STD-810F

Physical Data

Size(without eyepiece) 200mm×115mm×78mm(with 35mm lens) 220mm×115mm×78mm(with 50mm lens)

Weight(with battery) 900g(with 35mm lens) 1000g(with 50mm lens)

Packing

Standard Thermal imaging sights, Combination cables， Picatinny rail, Warranty card, User manual, Certificate, Transport case

Option DC 5V power adapter

Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us.

Applications of Eagle30CC Thermal Imaging Sight

Law enforcement

Targeting systems

Defense systems
