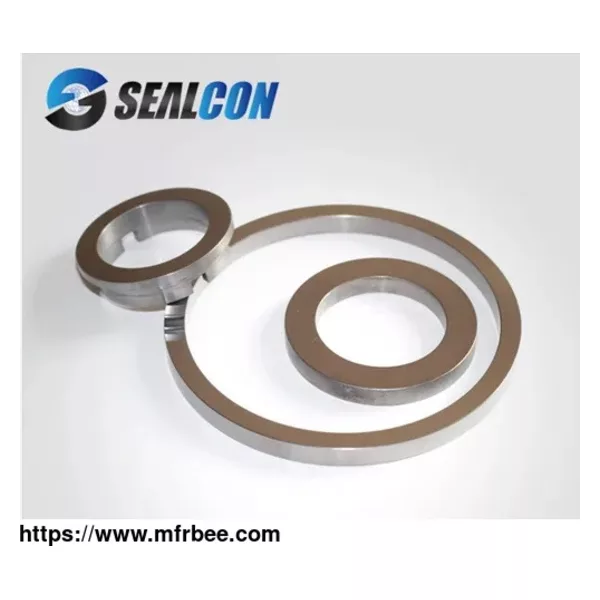

TC Seal

TC materials have features of high hardness, strength, abrasion resistance and corrosion resistance. It is known as “Industrial Tooth”. Due to its superior performance, it has been widely used in military industry, aerospace, mechanical processing, metallurgy, oil drilling, electronic communication, architecture and other fields. For example, in pumps, compressors and agitators,TC seal sare used asmechanical seals. Good abrasion resistance and high hardness make it suitable for the manufacture of wear-resistant parts with high temperature, friction and corrosion.

Categories of TC Seal Material

According to its chemical composition and usage characteristics, TC can be divided into four categories: tungsten cobalt (YG), tungsten-titanium (YT), tungsten titanium tantalum (YW), and titanium carbide (YN).

Tungsten cobalt (YG) hard alloy is composed of WC and Co. It is suitable for processing brittle materials such as cast iron, nonferrous metals and non-metallic materials.

Stellite (YT) is composed of WC, TiC and Co. Due to the addition of TiC to the alloy, its wear resistance is improved, but the bending strength, grinding performance and thermal conductivity have decreased. Because of its brittleness under low temperature , it is only suitable for high-speed cutting general materials and not for the processing of brittle materials.

Tungsten titanium tantalum (niobium) cobalt (YW) is added to the alloy to increase the high temperature hardness, strength and abrasion resistance through appropriate amount of tantalum carbide or niobium carbide. At the same time, the toughness also is improved with better comprehensive cutting performance. It is mainly used for hard cutting materials and intermittent cutting.

The carbonized titanium base class (YN) is a hard alloy with the hard phase of TiC, nickel and molybdenum. Its advantages are high hardness, anti - bonding ability, anti - crescent wear and anti - oxidation ability. At a temperature of more than 1000 degrees, it can still be machined. It is applicable to the continuous-finishing of alloy steel and quenching steel.

Mechanical Sealing Material

Rubber Seal

Stainless Steel Seal

PTFE Seal

Carbon Seal

Ceramic Seal

SiC Mechanical Seal

TC Seal

Material Property of TC Seal

Sealcon mainly selects the materials of YN and YG series to provide customers with high quality TC Seal service.

model nickel content（wt%） density(g/cm²) hardness(HRA) bending strength(≥N/mm²)

YN6 5.7-6.2 14.5-14.9 88.5-91.0 1800

YN8 7.7-8.2 14.4-14.8 87.5-90.0 2000

model cobalt content（wt%） density(g/cm²) hardness(HRA) bending strength(≥N/mm²)

YG6 5.8-6.2 14.6-15.0 89.5-91.0 1800

YG8 7.8-8.2 14.5-14.9 88.0-90.5 1980

YG12 11.7-12.2 13.9-14.5 87.5-89.5 2400

YG15 14.6-15.2 13.9-14.2 87.5-89.0 2480

YG20 19.6-20.2 13.4-13.7 85.5-88.0 2650

YG25 24.5-25.2 12.9-13.2 84.5-87.5 2850

There are many cartridge seal suppliers, but Hangzhou Sealcon Fluid Machinery Co., Ltd are one of the best choices for you. we provide quality mechanical seals and etc. For types of mechanical sleeve or more information, please feel free to contact us!
