TSP(Thermally Stable Polycrystalline Diamond)

TSP diamond is made of diamond micro powder and a small amount of binder sintered under high temperature and high pressure. It has high wear resistance, strong impact toughness, good thermally stability, and dense structure, and is widely used in the manufacture of petroleum, geological drill bits, and Machining tools and gem processing.

Key Features and Application of Thermally Stable Polycrystalline Diamond

Thermally Stable Polycrystalline Diamond (TSP) is also called polycrystalline diamond solid pieces. TSP consists of diamond powder & bonder and is made in an ultra-high pressure and high temperature. TSP features good thermally stability up to 1200 °C, due to its thermally expansion binder the same as diamond and its chemical inertness.

Application: drilling bits and gauging.

Available Sizes of Thermally Stable Polycrystalline Diamond

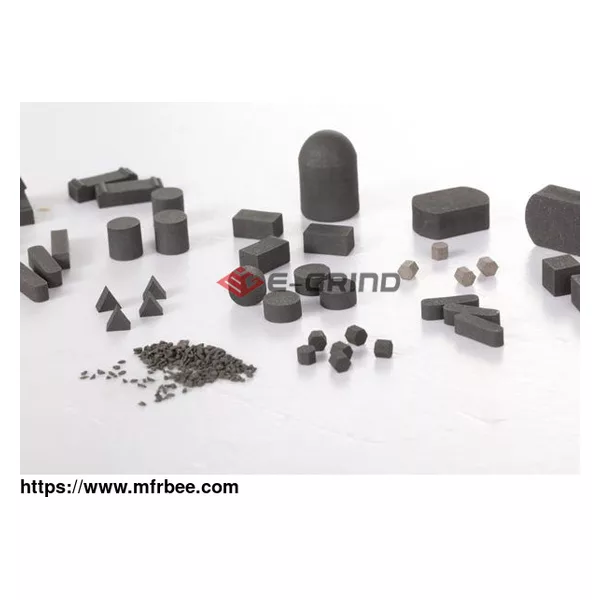

E-Grind supplies TSP in various shapes and hardness.

Diameter x length x angle

Ф1x1.2x120° □1.0x1.0x1.0

Ф1.2x3.5x120° □1.5x1.5x1.5

Ф1.1x3.5x180° □1.5x1.5x3

Ф1.5x3.5x180° □1.5x1.5x4/5

Ф1.5x4x180° □2x2x2

Ф1.8x4x180° □2.5x2.5x2.5

Ф2x4x120°/180° □2.5x2.5x5

Ф2.7x4x120° □2.6x2.5x1.5

Ф3x3x180° □3x3x3

Ф3x2.6x180° □3.5x3.5x3.5

Ф3x5x120°/ 180° □3x3x4

Ф3x6x120° □3x3x6

Ф3.3x6.3x180° □3x3x5

Ф4x4x180° □4x4x2.5

Ф4x5x90°/180° □4x4x4

Ф4x6x120° □4x4x6

Ф5x4x180° □4x4x8

Ф5x5x120°/180° □5x5x5

Ф5.3x2.1x180° □5x5x8

Ф6x3x180° □5.3x3.2x1.5

Ф6x4x180° □16x12x6

Ф6x6x120°/180° △4x4x4x2.6

Ф6x8x120°/180° △5x5x5x3

Ф6x12x120°/180° △6x6x6x3.5

Ф6.3x3.3x180° △6x6x6x4

Ф6.3xФ5.2x3.3x180° △6x6x6x4.5

Ф8x2.6x180° △6x6x6x5

Ф10x2.2x180° △6.2x6.2x4.3

Ф13x2.5x180° △7x7x7x2

Ф13x3x180° 3x3x10 R1.5

Ф13x3.5x180° Hexaganal 8x3.5

Ф18.8x3.2x180°

E grind is a professional wire drawing dies supplier, we provide diamond powders, diamond wire drawing dies, pcd wire drawing dies, china abrasives and etc. Contact us to know more.
