Steel Formwork
Product Quick Detail
- FOB Price
- USD $10.00 / Piece
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
TECON Steel/metal formwork system mainly contains Steel LITE Formwork, HETO Frame Wall Formwork, Steel Deck Slab Formwork, Adjustable Steel Frame Column Formwork, LITE Steel Column Formwork and
Single Side Formwork.
Advantages of Steel Formwork
Steel column formwork formwork can save costs and bring environmental benefits to the construction process.
Creating steel formwork requires a minimal production process. There are many ways to make steel, one of which is computer modelling. The digital modelling process ensures that the steel is formed
correctly the first time it is created and formed, thereby minimizing rework. If the steel formwork can be manufactured quickly, the speed of fieldwork will also be accelerated.
Due to its strength, steel is suitable for extreme environments and severe weather conditions. Its anti-corrosion performance reduces the possibility of accidents for building builders and
residents, thus providing a safe environment for everyone.
Thanks to the reusability and recyclability of steel, metal formwork can be regarded as a sustainable building material. Therefore, more and more companies are making sustainable development
choices to reduce environmental damage.
Types of Steel Formwork

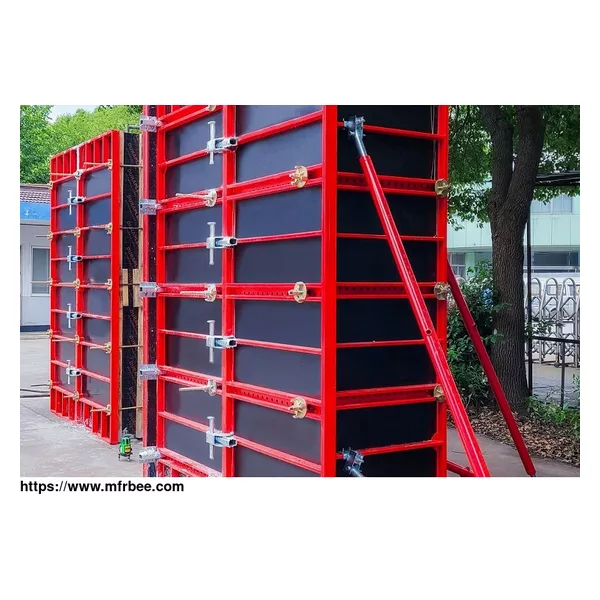

TECON HETO Frame Wall Formwork
TECON HETO formwork is a steel frame panel system lined with 12mm birch film-faced-plywood, universal and high efficient for walls in medium to big scale projects under crane assistance. The
alignment coupler for all panel connections ensures high-speed site assembly.
Feature of HETO Frame Wall Formwork
Easy to connect.
Adjustable panel.
Large-area shuttering.
Easy and fast operations.
Adjustable alignment coupler.
Complete piece birch plywood and replaceable.
Specifications of HETO Frame Wall Formwork
"73mm steel frame depth, Powder coated or hot-dip galvanization finishing, lined with 12mm TECON-Form plywood. Panel widths up to 1.0m, and panel heights up to 3m, with main panel sizes as below
table (W*H, mm)."
Feature of HETO Frame Wall Formwork
Easy to connect.
Adjustable panel.
Large-area shuttering.
Easy and fast operations.
Adjustable alignment coupler.
Complete piece birch plywood and replaceable.
Specifications of HETO Frame Wall Formwork
"73mm steel frame depth, Powder coated or hot-dip galvanization finishing, lined with 12mm TECON-Form plywood. Panel widths up to 1.0m, and panel heights up to 3m, with main panel sizes as below
table (W*H, mm)."
Aligned and tight connections by Alignment Coupler, including filler timber compensations up to 10 cm. Allowable fresh concrete pressure: 60 kN/m².
Application of HETO Frame Formwork
Residential & commercial buildings with big area walls, infrastructure projects, adjustable columns and others.
Related products of HETO Frame Formwork
Aluflex formwork
BASE 20 formwork
Steel Lite formwork
TECON Adjustable HETO Frame Column Formwork
TECON Adjustable HETO Frame Column formwork is a steel frame panel system lined with 12mm film-faced-plywood, universal and high efficient for column in medium to big scale projects under crane
assistance. With the alignment coupler for all panel connections, it ensures very fast site assembly.
Feature of TECON Adjustable HETO Frame Column Formwork
Easy and simple connection with user friendly adjustable alignment couplers
Efficient assembly and operation with only a few panel widths and heights, as well as inset tie points
Adjustable column sizes with easy transportation
Long service life and easy for cleaning by its nice finishing
Compatible with normal GI tube for extra reinforcement at lowest cost
Application of Single Side Formwork
Single sidewalls in the metro station, sewage treatment plants, and other excavations projects.
Related products of Single Side Formwork
Dam formwork
BASE 20 formwork
Multi-function climbing formwork
Now the price of steel shutters for concrete for sale is affordable, if you have needs, please contact us.
As one of concrete formwork suppliers, we have types of related products for sale, if you have needs, please leave us a message.
