Plastic Formwork
Product Quick Detail
- FOB Price
- USD $10.00 / Piece
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

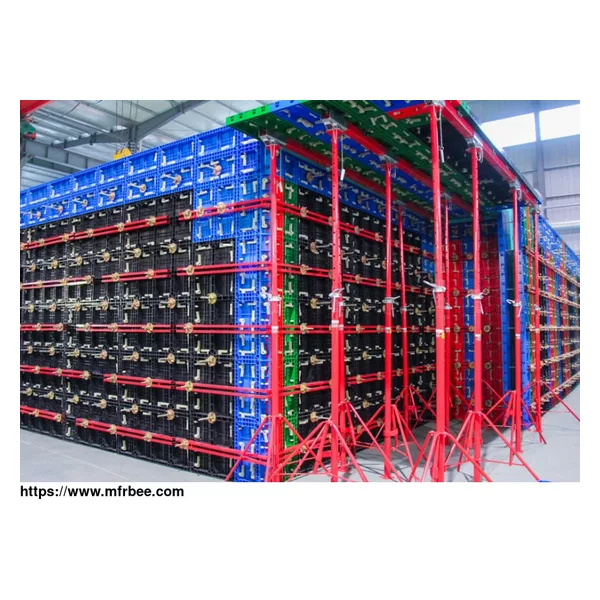

TECON plastic column formwork is made from ABS or PP with fibreglass. It is the lightest system among all other material commercial formwork systems.
As one of plastic formwork suppliers, we have Plastic Formwork TP60+, Plastic Adjustable Column Formwork and Plastic Round Column Formwork right now for your option. With daily productivity of up
to 40sqm/person, it has wide application areas such as remote areas where construction machines can’t go or project sites with no crane available.
Advantages of plastic formwork
The plastic formwork system is made of a specific grade of plastic, neither placing any attached material nor chemical reaction between the poured material and the plastic formwork. Therefore, the
surface of the reinforced concrete element will not have any spots.
Due to the perfect adaptability of each part of the system, the leakage of water or newly poured concrete from different parts is avoided. In addition, it is the most labour-saving system because
it is easy to install and insert and lightweight compared to other formwork systems.
There is no need to nail and lubricate the board before pouring concrete because the automatic levelling of the plugging system can automatically level the board, so compared with the traditional
formwork system, the time spent during installation and disassembly is reduced.
In addition, the plastic formwork can be easily washed with water after use. If it breaks due to improper handling, it can be sealed with a low-pressure hot air gun.
Other formwork materials (such as wood, steel, aluminium) will have various disadvantages, exceeding their benefits. For example, wood is quite expensive and has a significant impact on the
environment due to deforestation.
For plastic formwork, it can be used many times. However, because the plastic formwork price is higher than some other types of formwork, it is wrong in many cases. In contrast, plastic formwork
can be recycled, and in addition to reducing processing time and improving reusability indicators, it is also environmentally friendly.
Plastic Formwork TP60+
TECON Plastic formwork TP60 is recognized as the lightest formwork system due to its medium size panel design and the application of ABS (Acrylonitrile Butadiene Styrene). Besides its lightweight,
it is also elementary to use even by unskilled workers. Walls, columns, slabs can be quickly and efficiently formed with only a few panel sizes and accessories.
Feature of Plastic Formwork TP60+
Quick clean with just water.
Installation without crane assistance due to its lightweight.
Fast and extremely easy to assemble with only a few accessories, no skilled workers required.
Universal application on walls, columns and slabs and others, also the modular house with one pour.
Specification of Plastic Formwork TP60+
Less or even no plaster after strip.
Different column sizes at 5cm increment start from 20cm.
It can also be used with foam concrete (lightweight concrete).
High strength and durable panels can reach up to 100 reuse times.
Up to 25cm slab thickness and 3.6m high wall by one pouring, for a maximum fresh concrete pressure of 50Kn/m2.
Specification of TECON Plastic Round Column Formwork
Panel height 750mm;Optional diameter at 300mm,350mm,400mm and 450mm;Optional Column height: 750mm, 1500mm, 2250mm, 3000mm;Fresh concrete pressure up to 60KN/sqm.
Application of TECON Plastic Round Column Formwork
For round column project, housing, commercial buildings.
TECON Adjustable Plastic Column Formwork
TECON Adjustable Plastic Column Formwork is the lightest and most labour-saving column formwork due to its portability. The fast and straightforward assembly becomes a reality with 45 columns
available by only one adjustable panel.
Feature of TECON Adjustable Plastic Column Formwork
Waterproof panel and easy clean.
Easy and fast assembly by just one sort of handle.
Lightweight, thus labour-saving and efficient assembly.
Forty-five sizes of columns are available by only one adjustable panel.
Finishing smooth concrete over 30 times without release agent.
Made up of PP reinforced by fibreglass hence could be reused over 100 times
Specification of TECON Adjustable Plastic Column Formwork
Fresh concrete pressure up to 60KN/sqm.
Totally 45 sizes from 200x200mm to 600x600mm at 50mm increment.
Application of TECON Adjustable Plastic Column Formwork
Column sizes from 200*200mm to 600*600mm
Now the price of concrete shuttering for sale is affordable, if you have needs, please contact us.
If you want to know more types of formwork and scaffolding systems, please visit our website.
