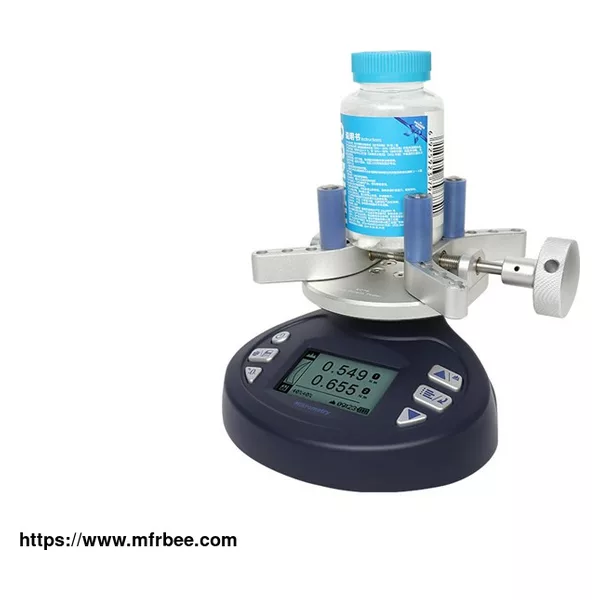

ECT Bottle Cap Torque Tester

ECT Bottle Cap Torque Tester

Mikrometry cap torque tester is an intelligent multi-functional measuring instrument that is designed for testing various kinds of bottle lid torque. Bottle cap torque tester is mainly used in testing and calibrating tighten force, parts torsional destructive testing, etc. The bolt tension tester is easy to operate, with high precision and complete functions. Cap torque meter is widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc. As one of the leading bottle cap torque tester suppliers in China, Mikro Metry provides quality bottle torque testers deserving your trust.

The cap digital torque gauge tester is a kind of torque meter gauge designed to measure the applied and removed torque of bottle caps which can effectively grip containers of various shapes and sizes, while the optional flat and adjustable jaws provide a unique profile. Bottle cap torque tester made by Mikrometry, one of the leading measuring instruments manufacturers in China, has a sturdy aluminum design and simple intuitive operation including a series of complex productivity-enhancing functions so that it can be used in laboratories and production environments.

ECT Bottle Cap Torque Testers Features

Clamping Range: Φ19.5~Φ190mm

Curve or digital display modes

Calibration certificate Included

Charger with US/EUR/UK Plugs selectable

USB or RS232 communication interface, easy to communicate with PLC

Accuracy: ± 0.3% Readings

Sampling Rate: up to 2KHz

Torque Tester For Bottle Caps Specifications

Range 5%~100% Capacity

Accuracy ± 0.3% Readings

Selectable Units N.m、N.cm、kgf.cm、lbf.ft、lbf.in

Display 240*160 dot matrix LCD(3.1 inch) with LED Backlight

Overload Capacity 120% of F.S.

Measurement Mode Track, Peak, First Peak、Auto Peak、Auto First Peak、Double Peak

Display Mode Digital / Curve

Data Sampling Rate Up to 2KHz

Memory 1000 data

Set Point Programmable high and low limits

Power 3.6VDC 1600mAH Ni-Mh rechargeable batteries

Battery Life Approx. 25 hours per charge

Charger Universal USB/BM charger, Input:110~240VAC

Temperature Effects <0.03% FS per °C

Communication USB or RS-232

Software Free software for USB communication

Outputs RS-232, "Within" set point output， "Under or over" set point output

Operating environment Temperature: -10 to 40°C

Relative Humidity: 20 to 80%

Storage environment Temperature: -20 to +50°C

Relative Humidity: 5 to 90%

Dimension 197*200*142(mm)

Weight ~ 2.5 kg

Accessories AC adapter/charger, USB cable

Options Mini-printer, RS-232 Cable, Small Diameter Jaw, EST-TT2 Torque Test Stand.

N*m N*cm kgf*cm lbf*ft lbf*in

ECT2 0.1~2 / 0.0002 10~200 / 0.02 1~20 / 0.002 0.07~1.48 / 0.0002 0.89~17.7/ 0.002

ECT5 0.25~5 / 0.0005 25~500 / 0.05 2.5~50 / 0.005 0.18~3.7 / 0.0005 2.2~44.3 / 0.005

ECT10 0.5~10 / 0.001 50~1000 / 0.1 5~100 / 0.01 0.37~7.4 / 0.001 4.4~88.5 / 0.01

ECT20 1~20 / 0.002 100~2000 / 0.2 10~200 / 0.02 0.7~14.8 / 0.002 8.9~177 / 0.02

Bottle Cap Torque ECT Tester Display Indication

Keystroke indication of ECT Bottle Torque Tester

LCD Screen Indication of Handheld Bottle Cap Torque Tester

1. Test Mode

2. The analog bar and direction on the ECT bottle cap torque tester indicate the current position in whole capacity. When the bar enters the area enclosed by a dotted line, means overload.

3. Storage/Print Setting

4. Time and Power

5. Torque Value and Unit

6. Statistics: Saved five-point measurements value.

7. Analysis: Average Variance criterion.

8. Prompt

First Peak/Double Peak: Drop ratio

How to Use Digital Cap Torque Tester？

1. Installation

Mikro Metry handheld bottle cap torque tester can be used just put on or be fixed on the workbench or sand. For high capacity tests or accurate and stable measurements are required, it is best to use some kind of test stand or loader.

2. Power On/Off

Press the power button for 2 seconds to power On or Off the digital bottle cap torque tester.

3. Clamp Adjustment

Adjust the position of 4 clamping rods to fit the size of the test piece. It is best to turn on the bottle torque tester while adjusting and clamping. Its overload alarm can be used to avoid overloading during operation.

4. Testing

① Select Units

② Select Test Mode

Select the appropriate test mode according to the measurement method or requirements.

③ Install test sample

④ Zeroing (remove tare)or Update(refresh measuring) Cap Torque Tester

5. Storage/Print

Measured results can be stored in the torque tester for bottle caps so that you can review or print them later.
