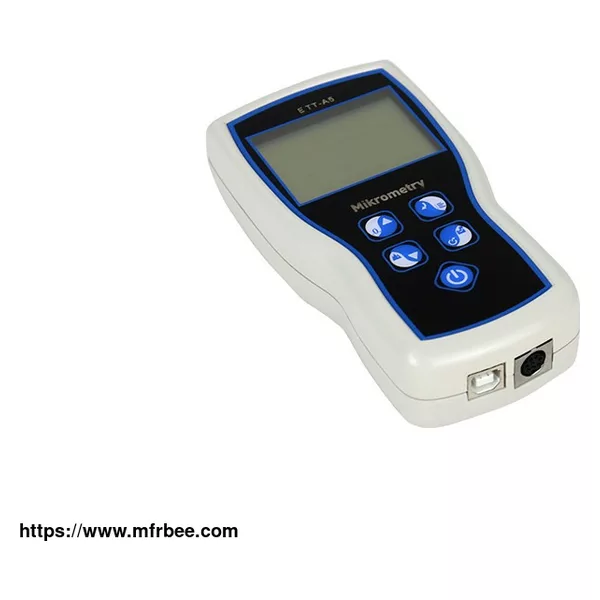

ETTA Advanced Digital Torque Indicator

ETTA Advanced Digital Torque Indicator

Mikrometry digital push pull force gauge is a designed with our torque senser. This digital torque indicators are main used in testing and calibrating tighten force, parts torsional destructive testing, etc. With features of simple operation, high precision, easy to carry, complete functions etc. The digital measuring instrument can be widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.

Feature Of ETTA Advanced Digital Torque Indicators

Durable metal case

Automatic reversible display

Touch key for minimized disturbance

Automatic load cell identification

Curve or digital display modes

Calibration certificate Included

Charger with US/EUR/UK Plugs selectable

USB or RS232 communication interface, easy to communicate with PLC

Low battery alarm

Accuracy: ± 0.3% @Readings

Sampling Rate: up to 2KHz

Specifications Of ETTA Advanced Digital Torque Indicators

Range 5%~100% Capacity

Accuracy ± 0.3% @Readings

Selectable Units N.m、N.cm、kgf.cm、lbf.ft、lbf.in

Display 160*128 dot matrix LCD(2.8 inch) with LED Backlight

Overload Capacity 120% F.S.

Measurement Mode Track, Peak, First Peak,Auto Peak, Auto First Peak

Display Mode Digital / Curve

Sampling Rate Up to 2KHz

Memory 1000 data

Set Point Programmable high and low limits

Battery Indicator Display flashes battery icon when battery is low

Power 3.6VDC 800mAH Ni-Mh rechargeable batteries

Battery Life Approx. 14 hours for continuous use

Charger Universal USB/BM charger, Input:110~240VAC

Temperature Effects <0.03% FS per °C

Communication USB or RS-232

Software Free software for USB communication

Outputs RS-232, "Within" set point output， "Under or over" set point output

Operating environment Temperature: -10 to 40°C

Relative Humidity: 20 to 80%

Storage environment Temperature: -20 to +50°C

Relative Humidity: 5 to 90%

Accessories AC adapter/charger, USB cable

Options Mini-printer, Measuring Adapters, RS-232 Cable, EST-TT2 Torque Test Stand

Model Capacity/ Resolution

N.m N.cm kgf.cm lbf.ft lbf.in Drill Chuck

ETTA1 1/0.0001 100/0.01 10/0.001 - 8.85/0.001 1~10 mm

ETTA5 5/0.0005 500/0.05 50/0.005 3.69/0.0005 44.3/0.005

ETTA10 10/0.001 1000/0.1 100/0.01 7.38/0.001 88.5/0.01 2~13 mm
