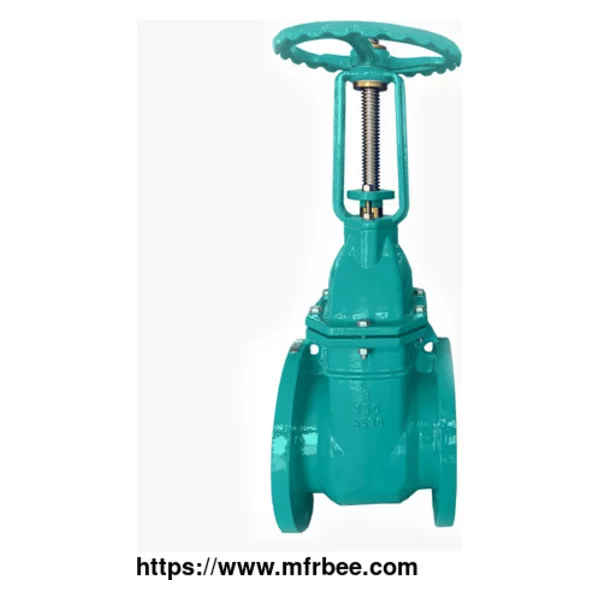

Metal Seated Gate Valve

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Features of Metal Seated Gate Valve

The stem is permanently sealed by three independent seals, and if the seal wears out after long use, the gland bolts only need to be tightened;

Stem spherical stop-thrust, low friction resistance, so that the valve is light to open and close, low operating torque;

Major stem O-ring can be replaced with pressure in the pipe;

Epoxy resin sprayed on the inner and outer surface of the product, not easy to corrode.

Metal Seated Gate Valve Working Principle

Metal Seated gate valve vs resilient seated gate valve, Usually both can be used on the water pipeline, reilient seated gate china valve more for clean water pipeline, because the granular medium will cause damage to the rubber of the gate, while the metal seated gate valve is more widely used, the hardness of the bronze seat makes in the granular medium can also be very good to achieve the sealing effect and service life will not be greatly affected. But the metal seated gate valve production cycle is longer, the use of higher costs, so the choice between the two or according to the working conditions of the media conditions and budget to choose.

Metal Seated Gate Valve Installation and Commissioning

Metal seated gate control valve in the pipeline does not require frequent maintenance, depending on the time of use, the stem O-ring can be replaced periodically to reduce the possibility of leakage. For specific use, please consult Zeco Valve Group.

Metal Seated Gate Valve Material and Standard

Size Range: 2"~64"

Pressure Rating: 10bar ~ 25bar

Face to Face Dimensions: AMSE B16.10, EN558-1

Flange End Dimension: AMSE B16.5, AS4087, EN1092-2

Coating: WRAS approved Fusion Bonded Epoxy Coating

Inspection and Test: ISO 5208 / EN 12226-2

Part Material Standard

Body Ductile Iron/ Cast Iron EN 1563/DIN 1693

Bonnet Ductile Iron/ Cast Iron EN 1563/DIN 1693

Trim Ductile Iron/ Cast Iron EN 1563/DIN 1693

Seat Bronze/Brass ASTM B62/ ASTM B148

O-ring EPDM / NBR ISO 4633

For materials options not listed, consult factory.

Zeco manufactures valves in more than 50 different alloys.
