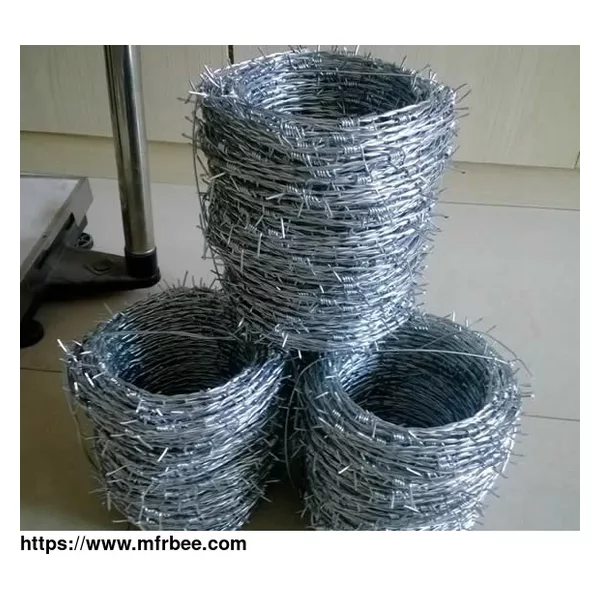

Hot dipped Galvanized Barbed Wire is a kind of security fencing materials fabricated with high tensile wire. It is used as a fencing or above the fence.
Barbed Wire as a fence used in defending of road way, grass boundary, farm land, airport, sport ground. Normally it's settled above the fence, for example razor wire fence, 358 mesh fence, chain link fence and welded fence, avoiding climbing across. Galvanized barb wire can also form a barbed wire wall with wooden sticks or iron sticks.
We produce hot dipped galvanized barbed wire in IOWA type, with 2 strands, 4 points. Barbs' distance 3'', 4'', 5'', 6'' (Tolerance +- 1/2").
We also supply AISI 316 soft 1.2mm stainless steel barbed wire.
Patterns:
- Single Twisted Barbed Wire
- Double Twisted Barbed Wire
- Traditional Twisted Barbed Wire
| Gauge of strand and barb in B.W.G | Barbs spacing | |||
| 3'' | 4'' | 5'' | 6'' | |
| 12x12 | 6.0617 | 6.7590 | 7.2700 | 7.637 |
| 12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
| 12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
| 13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
| 13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
| 14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
| 15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
| Type | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) | |
| Hot-dip zinc plating barbed wire | 10# x 12# | 7.5-15 | 1.5-3 | |
| 12# x 12# | ||||
| 12# x 14# | ||||
| 14# x 14# | ||||
| 14# x 16# | ||||
| 16# x 16# | ||||
| 16# x 18# | ||||
| PVC coated barbed wire; PE barbed wire | before coating | after coating | 7.5-15 | 1.5-3 |
| 1.0mm-3.5mm | 1.4mm-4.0mm | |||
| BWG11#-20# | BWG8#-17# | |||
| SWG11#-20# | SWG8#-17# | |||
| PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. |
