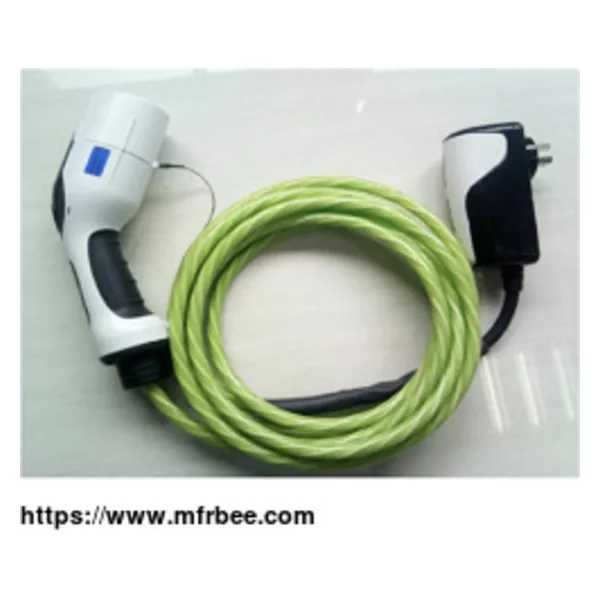

Introduction of luminous electric vehicle charging cable

FOB Price
USD $20.00 / Piece
Place Of Origin
China
Minimum Order
500
Packaging
wooden frame
Delivery
15 Days
为了方便第二天出行,一些司机选择在夜间为电动车充满电,以方便出行。一般的充电电缆不适合夜间充电和观察,并且有很多关于夜间充电发生事故的消息,因此诞生了一种方便夜间充电和观察的电缆。
OMG交流发光充电线采用冷光技术,使线缆能发出均匀柔和的光线,非常适合夜间充电和观察。此外,电缆在整个照明过程中没有热量输出,能耗低;其防震性能优异,不会因外界冲击而轻易失效。
产品特点
1.额定温度:-40°C~90°C
2.额定电压:AC 450/750V
3.绝缘电阻:60°C时≥0.037MΩ.km,符合CQC1103-215
4.火焰测试:单根电缆火焰测试
5.介电电压:2.5kVac / 15分钟无故障
6.低温冲击:-40°C,无裂纹
7.弯曲试验:5000次循环,导体无开路;介电耐压测试无击穿
8.发光寿命:≥10000H
9.耐油性:汽油,IRM903#,IRM902#,1H,无裂纹
10.耐酸碱:168h,抗拉强度变化≤30%;伸长率 ≥100%
11. 环境要求:符合 RoHS 和 REACH
发光电缆全部采用无卤素材料,绝缘材料为TPE,符合COC标准中S90绝缘材料的要求;护套由TPU制成,发光丝耐弯曲和耐磨,比其他产品更具柔韧性和弹性。
