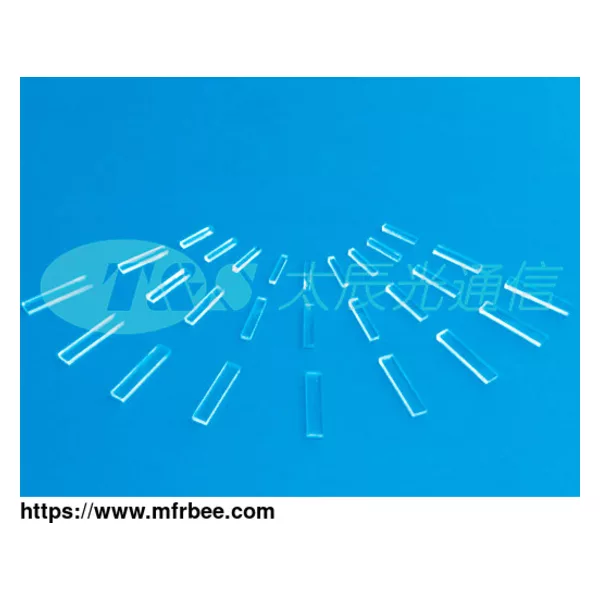

PLC CHIP

As one of the professional PLC splitter manufacturers, T&S provides a wide range of different fiber optic components at reasonable prices. Based on Planar Lightwave Circuit technologies, our PLC splitter chips can uniformly divide and guide light in the wavelength ranges from 1260nm to 1650nm. With low insertion loss (IL), low Polarization Dependent Loss (PDL) and high reliability, T&S PLC chip have been widely used in FTTx and other optical communication systems.

PLC Chip Features

Low PDL for PLC chip

Low IL for PLC chip

T&S PLC chip has a wide operating wavelength: 1260-1650nm

Compact size

RoHS compliance

PLC Chip Applications

Among all PLC splitter manufacturers, T&S PLC chip can be applied in Optical communication networks, Telecom equipment, Three-Network-Integration systems, including Signal/power distribution, Fiber-To-The-Home (FTTH), Passive Optical Network (PON).

PLC Chip Specifications

Parameter Class Unit 1x2 1x4 1x8 1x16 1x32 1x64

Operating Wavelength - nm 1260 -1650

Insertion Loss P dB 3.6 6.7 9.8 13.2 16.2 19.8

PDL P dB 0.15 0.15 0.2 0.25 0.25 0.3

Uniformity P dB 0.5 0.5 0.6 0.8 1.0 1.2

Return Loss - dB - ≥55

Directivity - dB - ≥55

Operating Temperature - ℃ - -40~+85

Storage Temperature - ℃ - -40~+85
