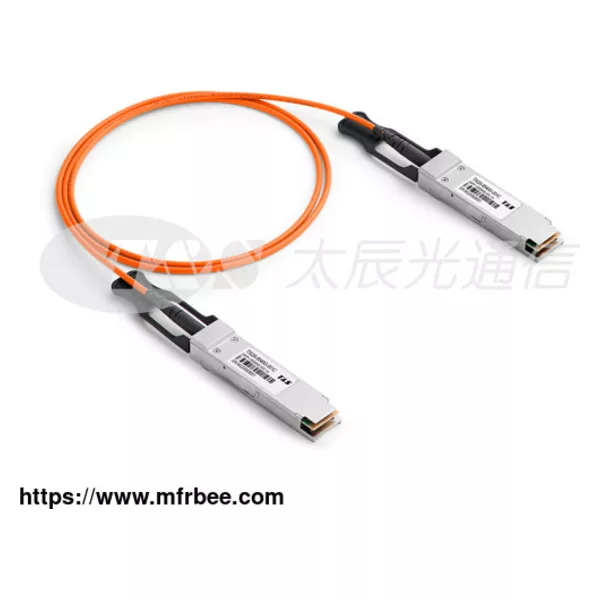

40G QSFP+ AOC

T&S Communication TSQS-8540G-xxxC is a four-channel, pluggable, and parallel fiber-optic QSFP+SR4 for 40-gigabit ethernet and it is compliant with the QSFP MSA, 40G Ethernet IEEE 802.3ba 40GBASE-SR4, and InfiniBand SDR/DDR/QDR standards. As a high-performance module for short-range multi-lane data communication and interconnect applications, T&S's 40G AOC integrates four full-duplex lanes in each direction with 40 Gbps bandwidth. As a professional AOC manufacturer, T&S produceschina 40g qsfp to qsfp aoc cables whose length is up to 300 meters using OM3 MMF.

Features of 40G QSFP+ AOC Cable

Four-channel full-duplex active optical cable with QSFP+ plugs

Electrical interface compliant to SFF-8436

Support 40GE data rate

Hot Pluggable

Built-in digital diagnostic functions

Low power dissipation:<1.5W

Operating case temperature 0℃ to 70℃

RoHS compliant

Applications of china 40g qsfp+ dac cables

40G Ethernet, Data Centers

Infiniband transmission, High-performance computing (HPC) application

Specifications of china 40g qsfp++ AOC

Parameter Symbol Min Max Unit

Storage Temperature TS -20 85 ℃

Relative Humidity RH 0 85 %

Case Operating Temperature TCase 0 70 ℃

Supply Voltage VCC -0.5 3.6 V
