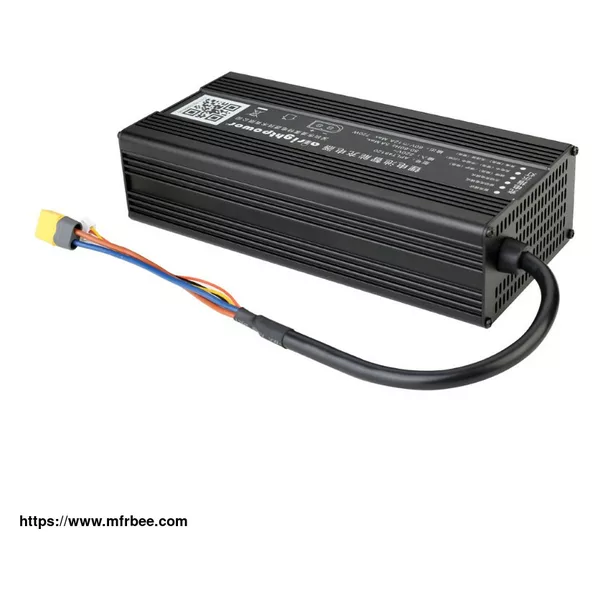

600W 48V 12A Battery Charger
Product Quick Detail
- FOB Price
- USD $1.20 / Piece
- Place Of Origin
- Shenzhen,China
- Minimum Order
- 1000
- Packaging
- PE bag + outer Carton
- Delivery
- 35days to 40days
Specifications
Typical output: 48V 15A battery charger
Fully auto 4 stages charging process by MCU controller
4 LED indicate the battery capacity from 25%~100%
Worldwide AC input 100V-240V
Charging stage: Small current pr-charge; constant current charging; Constant voltage charging
The Specifications Of 600W 48V 12A Battery Charger
Charger Model AC Input Voltage Battery Voltage Max Voltage(V) Max Current (A)
AP-H/LF600CH01460250 110/220 12 14.6 25
AP-H/LF600CH02920200 110/220 24 29.2 20
AP-H/LF600CH04200150 110/220 36 42 15
AP-H/LF600CH05460120 110/220 48 54.6 12
AP-H/LF600CH07140100 110/220 60 71.4 10
AP-H/LF600CH08400080 110/220 72 84 8
AP-H/LF600CH01200250 110/220 12 14.7 25
AP-H/LF600CH02400200 110/220 24 29.4 20
AP-H/LF600CH03600150 110/220 36 44.1 15
AP-H/LF600CH04800120 110/220 48 58.8 12
AP-H/LF600CH06000100 110/220 60 73.5 10
AP-H/LF600CH07200080 110/220 72 88.2 8
INPUT AC Input Voltage Range 100V ~ 240V
AC Input Frequency 45~65HZ
AC Power Factor Correction ≥0.98
OUTPUT Output Voltage Range 12~60V
Output Power Range 15A (Max)
VIBRATION 10～50HZ 2G 10 minutes，X，Y，Z /60 minutes
DIMENSIONS (mm) (L) 183х (W) 122.5х (H) 69
Protections Over current protection ,Over Voltage Protection ,Short- circuit Protection Reverse Connection Protection ,Battery open-circuit protection
CERTIFICATIONS CE ROHS
PACKING DETAILS 1.8kg/pcs
12pcs/Carton
Carton size: 535*315*280mm
Shen Zhen Shi Alrightpower Technology Co., Ltd is a professional 12v 20a battery charger factory, we provide 180w power adapter, Power Adapter, industrial power adapter, 48v 12a power supply and
etc. For more information, please feel free to contact us!
