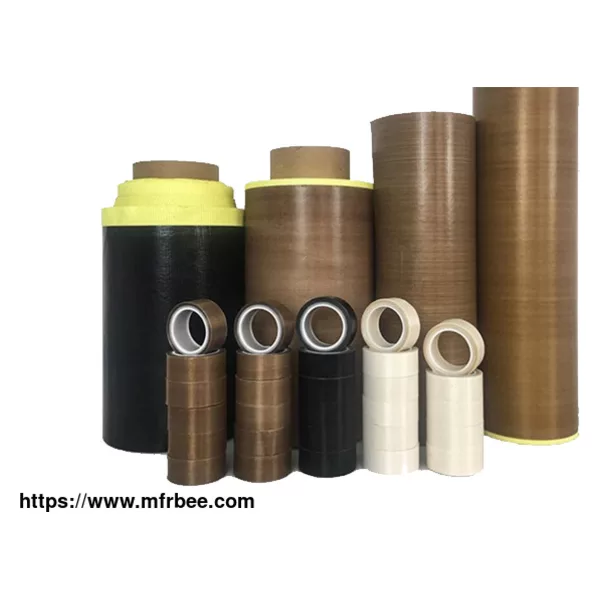

Teflon Adhesive Tape
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Teflon adhesive tape is also known as PTFE heat resistant adhesive tape. First, glass fiber is used as the base cloth, coated with Teflon emulsion, and dried to make Teflon glass fiber cloth. It is
a kind of heat-resistant tape made of silicone adhesive after secondary coating. The standard width of the heat-resistant Teflon tape is 1M or 1.25M and it can cut small specifications with high
precision. The thickness of the cloth tape is 0.08～0.40MM, and the thickness of the pure PTFE Teflon adhesive tape is 0.08～0.5MM.
The color of the teflon tape temperature resistance sticky tape is generally brown and black, other colors are also available. Teflon sticky tape is characterized by high strength and
high-temperature resistance. Someone may ask what temperature can Teflon tape withstand? And the answer is that the normal heat-resistant Teflon tape can withstand the working temperature up to 260
degrees. At the same time, the surface of the high-heat Teflon tape will remain smooth, anti-adhesive, bright, and resistant to various chemical corrosion.
Teflon Heat Resistant Tape Types
PTFE Film Tape
Buy Heat Resistant Tapes
PTFE Coated Glass Fabric Adhesive Tape
Buy Heat Resistant Tapes
BBQ Grill Mat
Buy Heat Resistant Tapes
Adhesive Backed Teflon Tape-TDS
PTFE coated fiberglass adhesive fabric series
Thickness(mm) width(mm) Adhesion(N/100mm) Tensile strength(N/100mm) Temp resistance(℃) Color
0.08 5mm-1250 22 900 -70~260 Amber/black/white
0.13 5mm-1250 28 1700 -70~260 Amber/black/white
0.18 5mm-1250 48 2750 -70~260 Amber/black/white
0.25 5mm-1250 62 3650 -70~260 Amber/black/white
Pure PTFE adhesive tape
Thickness(mm) width(mm) Adhesion(N/100mm) Tensile strength(N/100mm) Temp resistance(℃) Color
0.05 1000 20 300 -70~260 Grey
0.13 1000 25 400 -70~260 Grey
0.18 1000 44 650 -70~260 Grey
0.25 1000 58 950 -70~260 Grey
Features Of Teflon Adhesive Tape
01
Great heat resistance. Our heat-resistant Teflon tape can withstand the working temperature ranging from -70℃ to 260℃.
02
With the smooth surface, the high heat Teflon tape produced by Hopelight is not easy to adhere to any substance.
03
Our high-temperature Teflon tape also holds the properties of high insulation.
04
Strong stickiness. It is not easy to be taken off.
What is Teflon Tape Made Of？
Coated with Teflon emulsion on both sides, high heat Teflon tape is mainly made of glass fiber. During the production process, the Teflon sticky tape has to go through several times of coating and
drying. The selection of glass fiber for heat-resistant Teflon tape is very demanding. As different manufacturers will provide electronic cloth with different specifications, the final strength of
Teflon adhesive tape will easily appear to be different due to the diverse raw material selection. To resolve this problem, Hopelight, as one of the professional Teflon adhesive tape suppliers in
China, will carefully select the glass fiber cloth so as to ensure the eventual high-quality of high heat Teflon tape.
What is Teflon Tape Used for
Anti-adhesive lining, gasket, cloth, and conveyor belt; according to the thickness, it is used for conveyor belts, adhesive belts, sealing belts, etc. of various drying machines.
Welding cloth for welding and sealing of plastic products; plastic sheet, film, heat-sealing sheet lining tape.
High electrical insulation: electrical insulation tape base, spacer, gasket, lining ring. High-frequency copper clad laminate.
Heat-resistant cladding layer; laminated base material, insulator wrapping.
Microwave gaskets, oven slices, food drying;
Adhesive tape, transfer printing ironing tablecloth, carpet adhesive curing conveyor belt, rubber vulcanizing conveyor belt, abrasive sheet curing release cloth, etc.
Base cloth of pressure-sensitive tape.
Architectural membrane materials: ceilings for various sports venues, station pavilions, parasols, landscape tents, etc.
The heat-resistant Teflon tape is also widely used for anti-corrosion coating of various petrochemical pipelines, environmental protection desulfurization of waste gas from power plants, etc.
Flexible compensator, friction material, grinding wheel slice.
"Anti-static cloth" can be made after special processing.
Is PTFE Teflon Tape Heat Resistant? How Much Heat Can Teflon Tape Withstand?
As a manual synthetic polymer material using all hydrogen atoms in fluorine substituted polyethylene, Teflon has the characteristics of antic acid anion-alkali, insoluble in all solvents, and
high-temperature resistant. Normally, the heat-resistant Teflon tape can withstand the working temperature ranging from -270°C to 260°C. Thus, having stable performance, the high heat Teflon tape
can be utilized on various occasions.
How to Make Teflon Tape?
The production of a good roll of high heat PTFE Teflon tape requires the precise coordination of the following three processes: Coating, drying, rewinding, and cutting.
Coating: After the R&D developers select the chemical ingredients according to the desired properties of the heat-resistant Teflon tape, Hopelight will use a coating mold to apply the Teflon
coating solution over the glass cloth substrate thin and evenly. Such Teflon coating would be very uniform and free of other defects.
Drying: Following the coating process, the substrate coated with adhesive will need to enter the oven for drying. It should be noted that some coatings must be cooled and fixed before drying, and
some can be directly heated and dried.
Rewinding and cutting: Generally, the Teflon tape with great heat resistance on the market is about a few centimeters wide. Regarding the length, it's then about 5-50 meters long rolled together.
Whereas, from the viewpoint of practical and convenient production, the Teflon sticky tape with high-temperature resistance must be first made into a large volume (mother), and then by rewinding
slitting cutting process, packaging into the form of customers actually need.
As one of the most professional glass cloth tape manufacturers, we provide glass cloth tapes, ptfe teflon adhesive tape, teflon ptfe heat seal cloth sheet, teflon adhesive film, china high
temperature masking tape and etc. Want to know what temperature can ptfe tape withstandor more? Please contact us.
