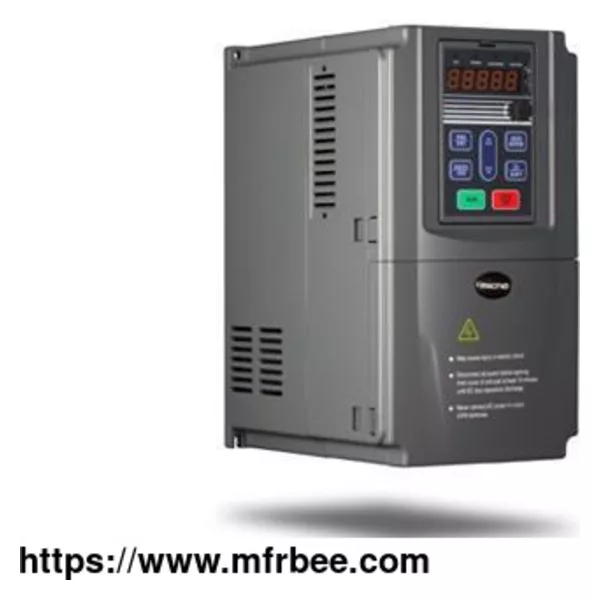

KE300A-01 Solar Pump Inverter Series
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
KE300A-01 series micno solar pump inverter adopts MPPT (Maximum Power Point Tracking) and excellent motor drive technology to maximize the power output from solar panels. KE300A-01 inverters are
compatible with both AC and DC input, and the AC output can be used for various kinds of normal AC pumps. When the solar power is not available, or the sunshine is not strong enough to drive the
pump, the inverter could be automatically switched to single-phase or three-phase AC input power, such as generator, grid power.
Features of KE300A-01 Solar Pump Inverter Series
Flexibility
Suitable for all kinds of pumps, including single phase 220V pump.
Support AC input, could switch to grid power supply to make system work 24 hours.
Smartness
Built-in MPPT technology with up to 99% efficiency.
With water level detection function, automatically regulate the pump
flow to prevent dryrunning, full water level, etc.
Reliability
10-year market proven experience of leading motor and pump drive technology.
Built-in soft start, overvoltage, overload, undervoltage and weak sunshine protection function.
High Cost-effectiveness
Plug-and-play system design, no need to set any parameter, easy to install.
No need battery, suitable for all kinds of applications.
Remote Monitoring
Standard RS-485 interface for remote monitoring of systems and viewing of parameters at any time.
Optional GPRS module for remote monitoring.
KE300A-01 inverter is the solar pump inverter equipped with overall protection function (self-checking functions for dry running, weak sunshine, full water level, etc.), motor soft start and speed
control functions, with perfect function, easy operation and installation.
KE300A-01 inverters can also support remote monitoring and control function, which can monitor all operation data and fault information of the inverters.
Technical Specifications of KE300A-01 Solar Pump Inverter Series
Technical Index Specification
220V inverter 380V inverter
Input DC voltage 280V~450V 480V~750V
Max input DC voltage 450V 750V
Recommended MPPT Voltage (Vmp) 280V~350V 480V~600V
MPPT efficiency 99.90%
Input AC voltage 1AC/3AC 220V/230V/240V 3AC 380V/400V/415V/440V
Output AC voltage 1AC/3AC 0~220V/230V/240V 3AC 0~380V/400V/415V/440V
Output frequency 0~300Hz
IP level IP20
Fault protection function Up to 30 general fault protections including overcurrent, overvoltage, under voltage, overheating, default phase, overload, shortcut, etc., and also include water level
sensor failure protection, full water, dry running, weak sunshine warning special protection functions for solar pump system.
Could record the detailed running status during failure & has fault automatic reset function.
Shenzhen MICNO Electric Co., Ltd. provides pv power booster, single phase solar pump inverter, solar pump inverter single phase, inverter pump, solar voltage booster, inverter micno, etc. Contact
us to know more.
