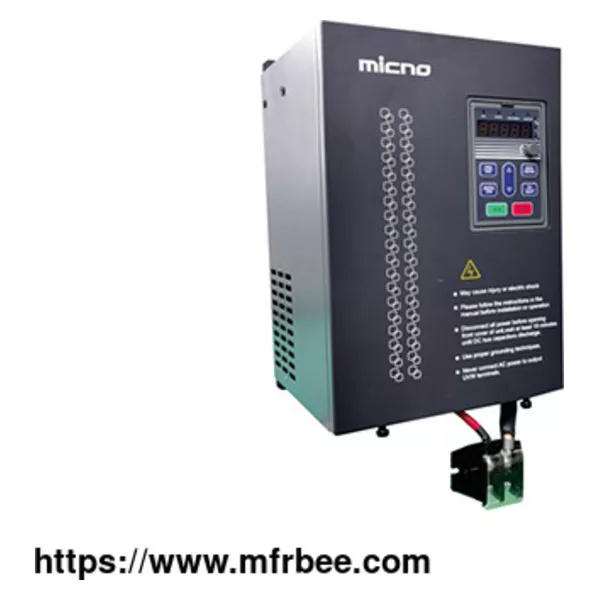

KE300A-12 Series Single-Phase 220-In, Three-Phase 380-Out Special Inverter

For the civil power (220V), the motor uses 380V field application characteristics, developed a special product which designed with module boosting technology. Optimizing performance design will make the drive no longer complicated. It integrates PG-free vector control, multi-stage V/f control, torque control and soft start functions, and is widely used in applications where speed control accuracy, torque response speed, and low-frequency torque output have higher requirements

Features of KE300A-12 Series Single-Phase 220-In, Three-Phase 380-Out Special Inverter

Easy to install and debug

Solid EMC design, unique radiator shape.

Adopt modular design

The main control system uses 32-bit high-speed DSP, integrated PG-free vector control, V/f control, and torque control.

The optimized motor parameter identification model can effectively reduce the sensitivity to motor parameters and make self-learning more accurate.

High starting torque: 150% of starting torque can be provided when it is at 0.5Hz;

Fast dynamic response: Under the vector control mode without PG, the dynamic response time is less than 20ms;

Built-in PID regulator can easily form a closed-loop control system for process quantities such as temperature, pressure and flow.

It has automatic fault reset and power-off reset functions to ensure continuous production and production efficiency.

Perfect protection functions: overvoltage/under-voltage protection, inverter overheat protection, ground fault protection, short circuit protection, overcurrent protection, overload protection, etc.

Specifications of KE300A-12 Series Single-Phase 220-In, Three-Phase 380-Out Special Inverter

Item Technical Index Specification

Input Input voltage 1AC 220V±15%

Input frequency 47~63Hz

Output Output voltage 0～rated input voltage

Output frequency V/f control: 0~3000Hz

Sensorless vector control: 0~300Hz

Operation command mode Keypad control

Terminal control

Serial communication control

Frequency setting mode Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combined & switched in various modes.

Overload capacity G model: 150% 60s, 180% 10s, 200% 3s

P model: 120% 60s, 150% 10s, 180% 3s

Starting torque 0.5Hz/150% (SVC); 1Hz/150% (V/f)

Speed adjustment range 1:100 (SVC), 1:50 (V/f)

Carrier frequency 1.0-16.0kHz，automatically adjusted according to temperature and load characteristics

Frequency accuracy Digital setting: 0.01HzAnalog setting: maximum frequency * 0.05%

Torque boost Automatically torque boost; manually torque boost: 0.1%~30.0%

V/f curve Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)

Acceleration/decele ration mode Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.1s~3600.0s

DC braking DC braking when starting and stopping

DC braking frequency: 0.0Hz~maximum frequency, braking time: 0.0s~100.0s

Jog operation Jog operation frequency: 0.0Hz~maximum frequency

Jog acceleration/deceleration time: 0.1s~3600.0s

Simple PLC & multi-step speed operation It can realize a maximum of 16 segments speed running via the built-in PLC or control terminal.

Built-in PID Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)

Automatic voltage regulation Keep output voltage constant automatically when input voltage fluctuating

Control Function Common DC bus Common DC bus for several inverters, energy balanced automatically

Torque control Torque control without PG

Torque limit “Rooter” characteristics, limit the torque automatically and prevent frequent over-current tripping during the running process

Wobble frequency control Multiple triangular-wave frequency control, special for textile

Timing/length/counting control Timing/length/counting control function

Over-voltage & over-current stall control Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping

Fault protection function Up to 30 fault protections including over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running status during failure & has fault automatic reset function

Input/output terminals Input terminals Programmable DI: 7 on-off inputs, 1 high-speed pulse input

2 programmable AI: AI1: 0～10V or 0/4～20mA

A12: 0～10V or 0/4～20mA

Output terminals 1 programmable open collector output: 1 analog output (open collector output or high-speed pulse output) 2 relay output

2 analog output: 0/4~20mA or 0~10V

Communication terminals Offer RS485 communication interface, support MODBUS-RTU communication protocol

Human machine interface LED display Display frequency setting, output frequency, output voltage, output current, etc.

Multifunction key QUICK/JOG key, can be used as multifunction key

Environment Ambient temperature -10℃～40℃, derated 4% when the temperature rise by every 1℃(40℃～50℃).

Humidity 90%RH or less (non-condensing)

Altitude ≤1000M: output rated power, ＞1000M: output derated

Storage temperature -20℃～60℃

Storage environment Indoor, no direct sunlight, dust, corrosive gas, flammable gas, oil mist, steam, dripping water, salt, vibration
