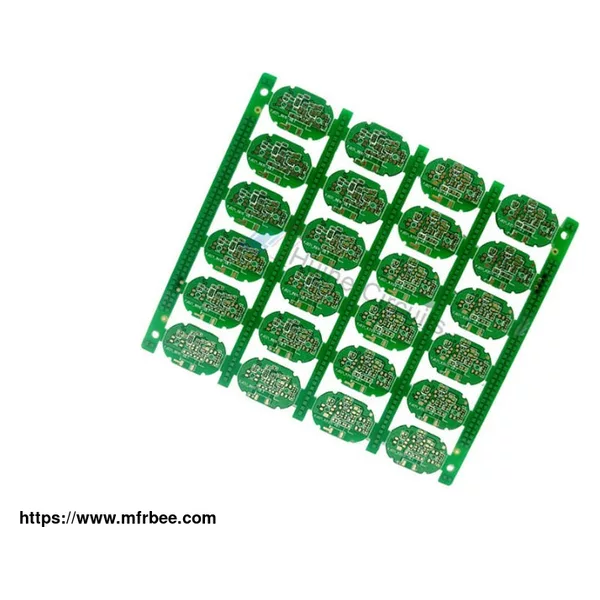

Via In Pad Fr4 PCB

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Via In Pad fr4 pcb sheet, using copper plating or epoxy to fill holesfor circuit board factor, prevent solder paste or flux from flowing into the via in pad, avoid solder ball getting into via or solder mask cover on pad and cause false soldering. HUIHE CIRCUITS Via In Pad PCB has passed ISO9001/ISO13485/IATF16949/UL/RoHS/REACH certification.

Via In Pad Fr4 PCB List

10 Layer Impedance Control Resin Plugging PCB

16 Layer ENIG Press Fit Hole PCB

6 Layer ENIG via-in-pad Prototype PCB Board

6 Layer ENIG via-in-pad PCB Prototype Service

6 Layer ENIG via-in-pad PCB

8 Layer ENIG via-in-pad PCB

What Is A Hole-In-The-Panel Circuit Board?

The hole in the disk is an important part of the multi-layer PCB China. It is not only responsible for the main functions of the PCB, but also the cost of drilling usually accounts for 30% to 40% of the fr4 circuit board manufacturing cost. In short, the holes pressed on the pads on the PCB can all be called holes in the disk.

Processing Requirements For Hole Plugs In The Disk

No solder mask ink entering the hole

There should be no tin beads hidden in the hole

No explosive oil, ink pads, making it difficult to mount components, etc.

Common Sense Of PCB Circuit Board Plug Hole

Prevent the tin from penetrating the component surface from the via hole to cause a short circuit when the PCB is wave soldered

Avoid flux residue in the vias

Prevent the tin balls from popping up during wave soldering, causing short circuits

Prevent surface solder paste from flowing into the hole, causing false soldering and affecting placement

If you want to know more about fr4 circuit board material and fr4 pcb thickness, please contact us.
